Namenode 启动

• 前言
• 启动 Namenode 组件
• • 启动脚本
  • Namenode.initialize
  • FSNamesystem.loadFromDisk
  • FsImage.recoverTransitionRead
  • FSImageFormat.load
  • FSImageFormatProtobuf.load
  • 反序列化加载FsImage文件内容
  • FsImage内存数据结构

前言

NameNode是HDFS中负责元数据管理的组件，它保存着整个文件系统的元数据信息，并且充当着指挥调度DataNode的作用。NameNode不仅在内存中保存着文件系统元数据信息，还会定期将文件系统的元数据（文件目录树、文件／ 目录元信息） 持久化到本地 fsImage 文件中， 以防止Namenode掉电或者进程异常崩溃。
如果Namenode实时地将内存中的元数据同步到fsimage文件中， 将会非常消耗资源且造成Namenode运行缓慢。 所以Namenode会先将元数据的修改操作保存在editlog文件中， 然后定期合并fsimage和editlog文件

启动 Namenode 组件

启动脚本

bin/hdfs --daemon start namenode

上述脚本会 调用 org.apache.hadoop.hdfs.server.namenode.NameNode的main方法

public static void main(String argv[]) throws Exception {// ...省略// 创建 namenodeNameNode namenode = createNameNode(argv, null);// ...省略
}

创建 NameNode 的过程，先进行参数解析，判断是 format / rollback / bootstrapStandby 等等操作类型。然后依次执行改逻辑，本章节主要是正对NameNode的启动过程。

依次往下阅读 ，进入到 NameNode的构造函数中 调用 initialize(getConf());

Namenode.initialize

此方法主要做了如下事项：

• 配置安全相关的信息UserGroupInformation
• 启动 JvmPauseMonitor 检查
• 启动 HTTP 服务端 （9870）
• 初始化FSNameSystem 核心组件 ，加载镜像文件和编辑日志到内存
• 初始化rpc server 组件
• 启动 公共 服务

protected void initialize(Configuration conf) throws IOException {if (conf.get(HADOOP_USER_GROUP_METRICS_PERCENTILES_INTERVALS) == null) {String intervals = conf.get(DFS_METRICS_PERCENTILES_INTERVALS_KEY);if (intervals != null) {conf.set(HADOOP_USER_GROUP_METRICS_PERCENTILES_INTERVALS,intervals);}}UserGroupInformation.setConfiguration(conf);loginAsNameNodeUser(conf);NameNode.initMetrics(conf, this.getRole());StartupProgressMetrics.register(startupProgress);pauseMonitor = new JvmPauseMonitor();pauseMonitor.init(conf);pauseMonitor.start();metrics.getJvmMetrics().setPauseMonitor(pauseMonitor);if (conf.getBoolean(DFS_NAMENODE_GC_TIME_MONITOR_ENABLE,DFS_NAMENODE_GC_TIME_MONITOR_ENABLE_DEFAULT)) {long observationWindow = conf.getTimeDuration(DFS_NAMENODE_GC_TIME_MONITOR_OBSERVATION_WINDOW_MS,DFS_NAMENODE_GC_TIME_MONITOR_OBSERVATION_WINDOW_MS_DEFAULT,TimeUnit.MILLISECONDS);long sleepInterval = conf.getTimeDuration(DFS_NAMENODE_GC_TIME_MONITOR_SLEEP_INTERVAL_MS,DFS_NAMENODE_GC_TIME_MONITOR_SLEEP_INTERVAL_MS_DEFAULT,TimeUnit.MILLISECONDS);gcTimeMonitor = new Builder().observationWindowMs(observationWindow).sleepIntervalMs(sleepInterval).build();gcTimeMonitor.start();metrics.getJvmMetrics().setGcTimeMonitor(gcTimeMonitor);}if (NamenodeRole.NAMENODE == role) {// 启动 HTTP 服务端 （9870）startHttpServer(conf);}// 初始化FSNameSystem 核心组件 ，加载镜像文件和编辑日志到内存loadNamesystem(conf);startAliasMapServerIfNecessary(conf);//初始化rpc server 组件rpcServer = createRpcServer(conf);initReconfigurableBackoffKey();if (clientNamenodeAddress == null) {// This is expected for MiniDFSCluster. Set it now using // the RPC server's bind address.clientNamenodeAddress = NetUtils.getHostPortString(getNameNodeAddress());LOG.info("Clients are to use " + clientNamenodeAddress + " to access"+ " this namenode/service.");}// 如果是NameNode 设置NameNodeAddress 以及  FsImageif (NamenodeRole.NAMENODE == role) {httpServer.setNameNodeAddress(getNameNodeAddress());httpServer.setFSImage(getFSImage());if (levelDBAliasMapServer != null) {httpServer.setAliasMap(levelDBAliasMapServer.getAliasMap());}}// 一些公共服务的初始化startCommonServices(conf);startMetricsLogger(conf);}

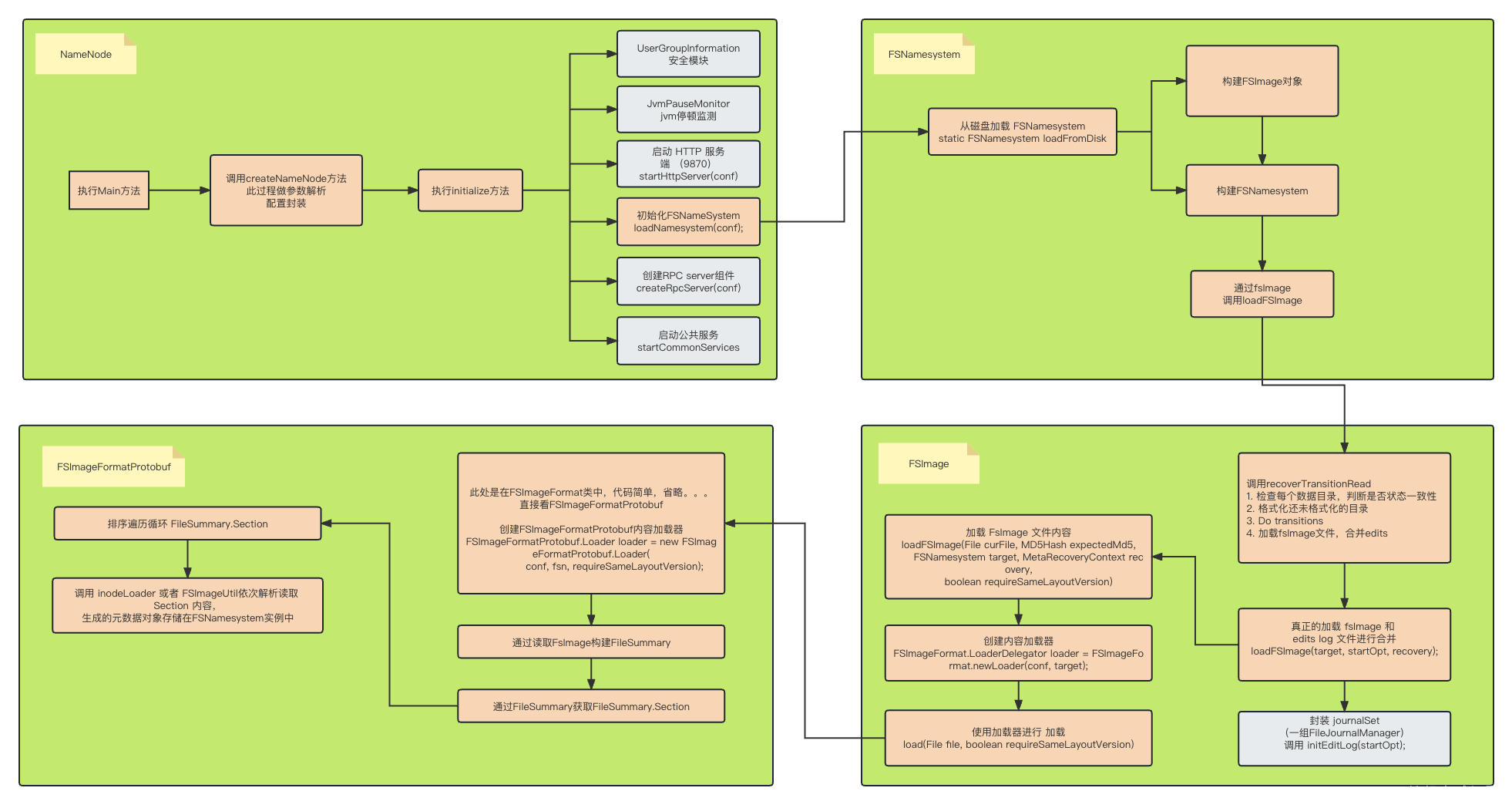

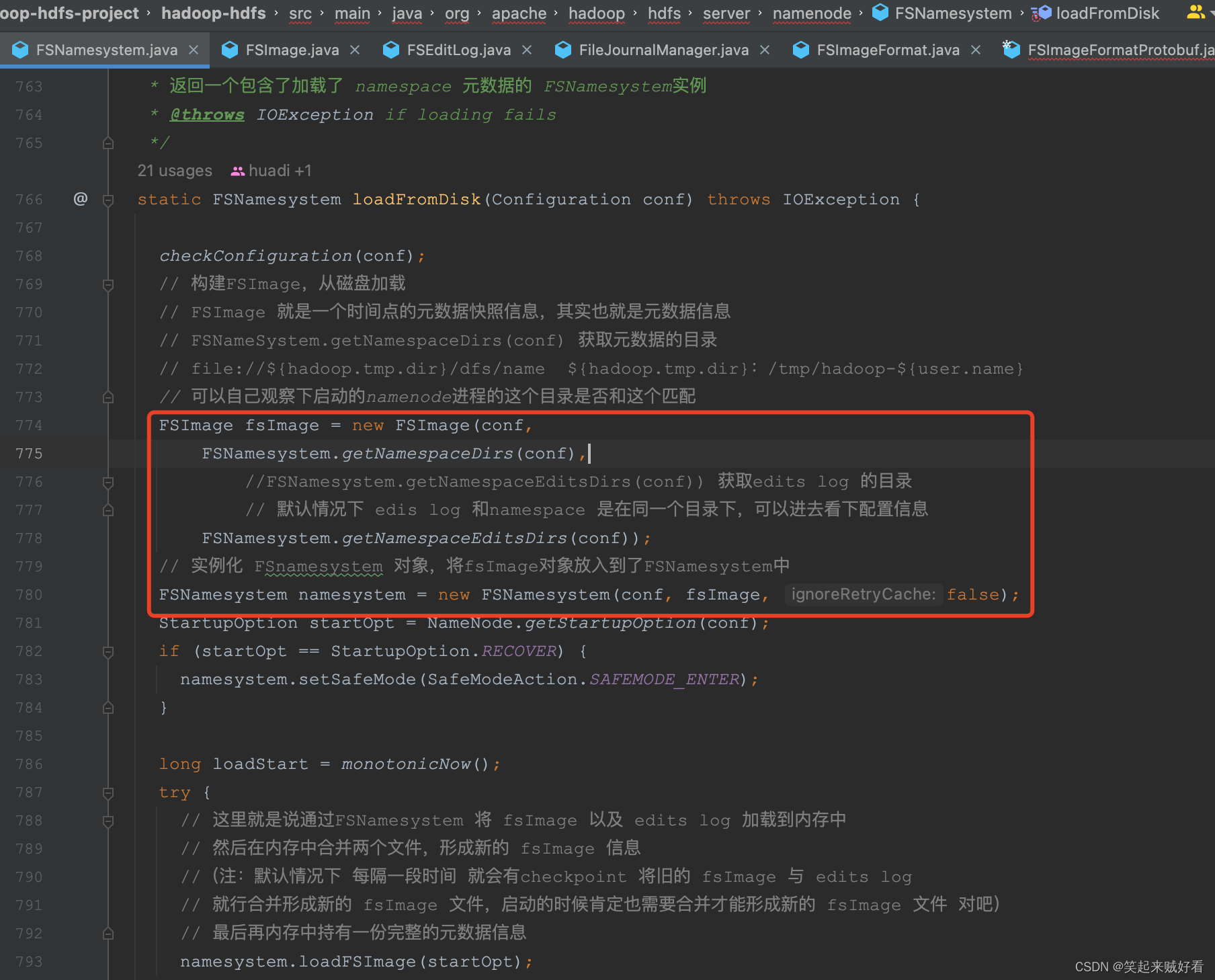

FSNamesystem.loadFromDisk

接着会调用 FSNamesystem 静态方法 loadFromDisk 加载 元数据

static FSNamesystem loadFromDisk(Configuration conf) throws IOException {checkConfiguration(conf);// 构建FSImage，从磁盘加载// FSImage 就是一个时间点的元数据快照信息，其实也就是元数据信息// FSNameSystem.getNamespaceDirs(conf) 获取元数据的目录// file://${hadoop.tmp.dir}/dfs/name  ${hadoop.tmp.dir}：/tmp/hadoop-${user.name}// 可以自己观察下启动的namenode进程的这个目录是否和这个匹配FSImage fsImage = new FSImage(conf,FSNamesystem.getNamespaceDirs(conf),//FSNamesystem.getNamespaceEditsDirs(conf)) 获取edits log 的目录// 默认情况下 edis log 和namespace 是在同一个目录下，可以进去看下配置信息FSNamesystem.getNamespaceEditsDirs(conf));// 实例化 FSnamesystem 对象，将fsImage对象放入到了FSNamesystem中FSNamesystem namesystem = new FSNamesystem(conf, fsImage, false);StartupOption startOpt = NameNode.getStartupOption(conf);if (startOpt == StartupOption.RECOVER) {namesystem.setSafeMode(SafeModeAction.SAFEMODE_ENTER);}long loadStart = monotonicNow();try {// 这里就是说通过FSNamesystem 将 fsImage 以及 edits log 加载到内存中// 然后在内存中合并两个文件，形成新的 fsImage 信息//（注：默认情况下 每隔一段时间 就会有checkpoint 将旧的 fsImage 与 edits log// 就行合并形成新的 fsImage 文件，启动的时候肯定也需要合并才能形成新的 fsImage 文件 对吧）// 最后再内存中持有一份完整的元数据信息namesystem.loadFSImage(startOpt);} catch (IOException ioe) {LOG.warn("Encountered exception loading fsimage", ioe);fsImage.close();throw ioe;}long timeTakenToLoadFSImage = monotonicNow() - loadStart;LOG.info("Finished loading FSImage in " + timeTakenToLoadFSImage + " msecs");NameNodeMetrics nnMetrics = NameNode.getNameNodeMetrics();if (nnMetrics != null) {nnMetrics.setFsImageLoadTime((int) timeTakenToLoadFSImage);}namesystem.getFSDirectory().createReservedStatuses(namesystem.getCTime());return namesystem;}

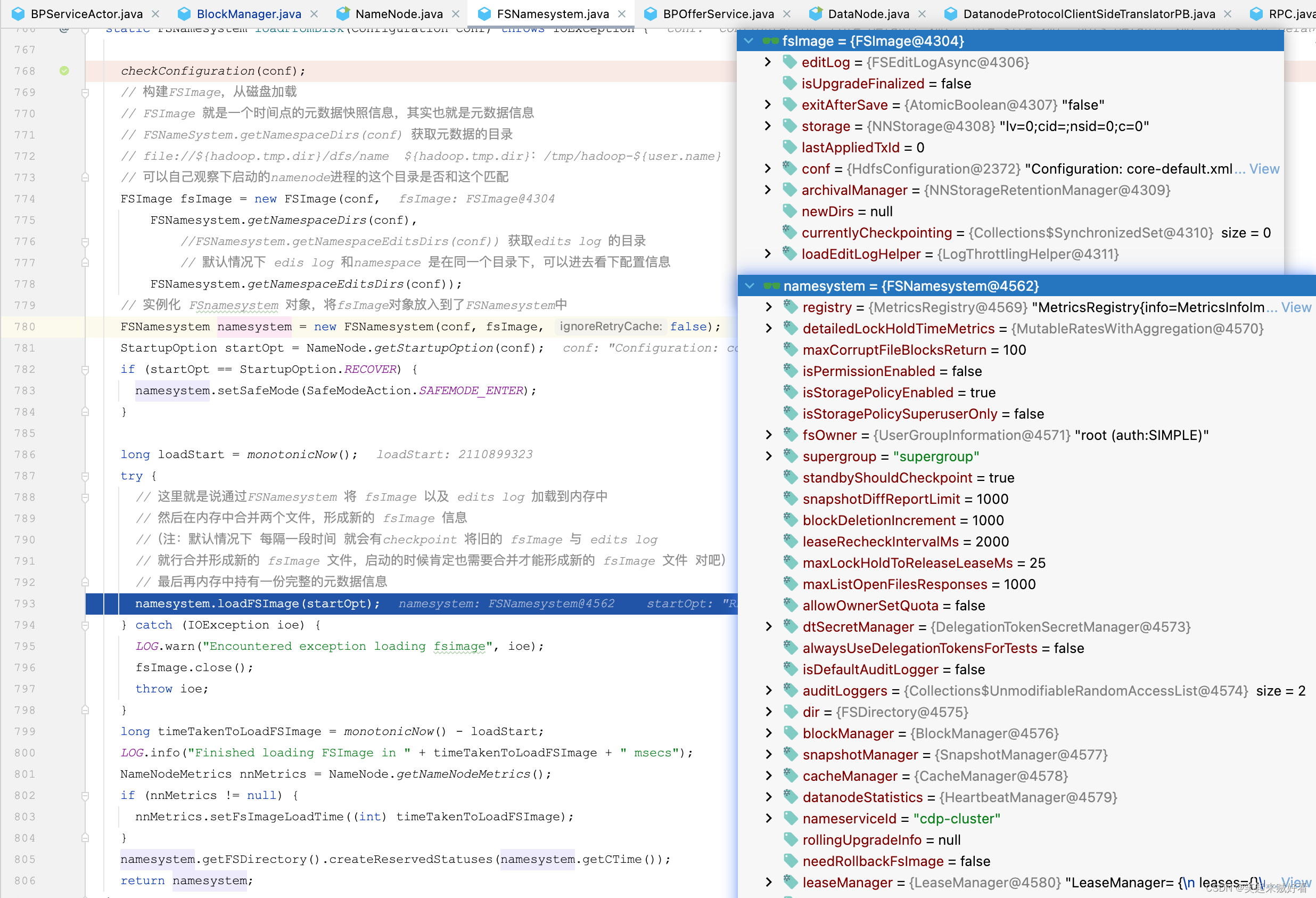

内存结构

FSNameSystem这里采用了门面模式，自己不负责具体的加载逻辑，交给FsImage去干活。
继续看FsImage.recoverTransitionRead(StartupOption startOpt, FSNamesystem target,MetaRecoveryContext recovery)

FsImage.recoverTransitionRead

主要做了四件事：

• 检查每个数据目录，判断是否状态一致性
• Format unformatted dirs. 格式化未格式的目录
• Do transitions 转换操作
• 真正的加载 fsImage 和 edits log 文件进行合并

/*** Analyze storage directories.* Recover from previous transitions if required. * Perform fs state transition if necessary depending on the namespace info.* Read storage info.* 分析存储的目录 就是存储 fsImage 以及 edits log 的目录* 从以前的状态恢复* 根据元信息 判断是否执行fs状态的转换* 读取存储的信息* 大概意思就是如果以前有 fsImage 和 edits log 就从文件信息中加载出来 并进行恢复* * @throws IOException* @return true if the image needs to be saved or false otherwise*/boolean recoverTransitionRead(StartupOption startOpt, FSNamesystem target,MetaRecoveryContext recovery)throws IOException {assert startOpt != StartupOption.FORMAT : "NameNode formatting should be performed before reading the image";// 获取fsImage 文件资源地址 其实也就是目录Collection imageDirs = storage.getImageDirectories();// 获取edits log 目录Collection editsDirs = editLog.getEditURIs();// none of the data dirs existif((imageDirs.size() == 0 || editsDirs.size() == 0) && startOpt != StartupOption.IMPORT)  throw new IOException("All specified directories are not accessible or do not exist.");// 1. For each data directory calculate its state and // check whether all is consistent before transitioning.// 检查每个数据目录，判断是否状态一致性// 进行数据恢复 里面就是对一些之前停机的时候 更新 回滚 新增数据的恢复操作Map dataDirStates = new HashMap();boolean isFormatted = recoverStorageDirs(startOpt, storage, dataDirStates);if (LOG.isTraceEnabled()) {LOG.trace("Data dir states:\n  " +Joiner.on("\n  ").withKeyValueSeparator(": ").join(dataDirStates));}if (!isFormatted && startOpt != StartupOption.ROLLBACK && startOpt != StartupOption.IMPORT) {throw new IOException("NameNode is not formatted.");      }int layoutVersion = storage.getLayoutVersion();if (startOpt == StartupOption.METADATAVERSION) {System.out.println("HDFS Image Version: " + layoutVersion);System.out.println("Software format version: " +HdfsServerConstants.NAMENODE_LAYOUT_VERSION);return false;}if (layoutVersion < Storage.LAST_PRE_UPGRADE_LAYOUT_VERSION) {NNStorage.checkVersionUpgradable(storage.getLayoutVersion());}if (startOpt != StartupOption.UPGRADE&& startOpt != StartupOption.UPGRADEONLY&& !RollingUpgradeStartupOption.STARTED.matches(startOpt)&& layoutVersion < Storage.LAST_PRE_UPGRADE_LAYOUT_VERSION&& layoutVersion != HdfsServerConstants.NAMENODE_LAYOUT_VERSION) {throw new IOException("\nFile system image contains an old layout version " + storage.getLayoutVersion() + ".\nAn upgrade to version "+ HdfsServerConstants.NAMENODE_LAYOUT_VERSION + " is required.\n"+ "Please restart NameNode with the \""+ RollingUpgradeStartupOption.STARTED.getOptionString()+ "\" option if a rolling upgrade is already started;"+ " or restart NameNode with the \""+ StartupOption.UPGRADE.getName() + "\" option to start"+ " a new upgrade.");}// 执行一些启动选项以及一些二更操作storage.processStartupOptionsForUpgrade(startOpt, layoutVersion);// 2. Format unformatted dirs.for (Iterator it = storage.dirIterator(); it.hasNext();) {StorageDirectory sd = it.next();StorageState curState = dataDirStates.get(sd);switch(curState) {case NON_EXISTENT:throw new IOException(StorageState.NON_EXISTENT + " state cannot be here");case NOT_FORMATTED:// Create a dir structure, but not the VERSION file. The presence of// VERSION is checked in the inspector's needToSave() method and// saveNamespace is triggered if it is absent. This will bring// the storage state uptodate along with a new VERSION file.// If HA is enabled, NNs start up as standby so saveNamespace is not// triggered.LOG.info("Storage directory " + sd.getRoot() + " is not formatted.");LOG.info("Formatting ...");sd.clearDirectory(); // create empty current dir// For non-HA, no further action is needed here, as saveNamespace will// take care of the rest.if (!target.isHaEnabled()) {continue;}// If HA is enabled, save the dirs to create a version file later when// a checkpoint image is saved.if (newDirs == null) {newDirs = new HashSet();}newDirs.add(sd);break;default:break;}}// 3. Do transitionsswitch(startOpt) {case UPGRADE:case UPGRADEONLY:doUpgrade(target);return false; // upgrade saved image alreadycase IMPORT:doImportCheckpoint(target);return false; // import checkpoint saved image alreadycase ROLLBACK:throw new AssertionError("Rollback is now a standalone command, " +"NameNode should not be starting with this option.");case REGULAR:default:// just load the image}// 真正的加载 fsImage 和 edits log 文件进行合并return loadFSImage(target, startOpt, recovery);}

因为FsImage load重载比较多，故直接到关键步骤。
此方法中判断是否支持 md5 加密

/**** 这里面就不仔细去详细的跟到文件加载了，* loadFSImage（）方法就是最终加载文件的方法* @param target* @param recovery* @param imageFile* @param startupOption* @throws IOException*/void loadFSImageFile(FSNamesystem target, MetaRecoveryContext recovery,FSImageFile imageFile, StartupOption startupOption) throws IOException {LOG.info("Planning to load image: " + imageFile);StorageDirectory sdForProperties = imageFile.sd;storage.readProperties(sdForProperties, startupOption);if (NameNodeLayoutVersion.supports(LayoutVersion.Feature.TXID_BASED_LAYOUT, getLayoutVersion())) {// For txid-based layout, we should have a .md5 file// next to the image fileboolean isRollingRollback = RollingUpgradeStartupOption.ROLLBACK.matches(startupOption);loadFSImage(imageFile.getFile(), target, recovery, isRollingRollback);} else if (NameNodeLayoutVersion.supports(LayoutVersion.Feature.FSIMAGE_CHECKSUM, getLayoutVersion())) {// In 0.22, we have the checksum stored in the VERSION file.String md5 = storage.getDeprecatedProperty(NNStorage.DEPRECATED_MESSAGE_DIGEST_PROPERTY);if (md5 == null) {throw new InconsistentFSStateException(sdForProperties.getRoot(),"Message digest property " +NNStorage.DEPRECATED_MESSAGE_DIGEST_PROPERTY +" not set for storage directory " + sdForProperties.getRoot());}loadFSImage(imageFile.getFile(), new MD5Hash(md5), target, recovery,false);} else {// We don't have any record of the md5sumloadFSImage(imageFile.getFile(), null, target, recovery, false);}}

调用 FSImageFormat的LoaderDelegator进行加载fsImage文件

FSImageFormat.load

private void loadFSImage(File curFile, MD5Hash expectedMd5,FSNamesystem target, MetaRecoveryContext recovery,boolean requireSameLayoutVersion) throws IOException {// BlockPoolId is required when the FsImageLoader loads the rolling upgrade// information. Make sure the ID is properly set.target.setBlockPoolId(this.getBlockPoolID());// 一个持有FSNamesystem 以及 conf 对象的 loader，加载器FSImageFormat.LoaderDelegator loader = FSImageFormat.newLoader(conf, target);loader.load(curFile, requireSameLayoutVersion);// Check that the image digest we loaded matches up with what// we expectedMD5Hash readImageMd5 = loader.getLoadedImageMd5();if (expectedMd5 != null &&!expectedMd5.equals(readImageMd5)) {throw new IOException("Image file " + curFile +" is corrupt with MD5 checksum of " + readImageMd5 +" but expecting " + expectedMd5);}long txId = loader.getLoadedImageTxId();LOG.info("Loaded image for txid " + txId + " from " + curFile);lastAppliedTxId = txId;storage.setMostRecentCheckpointInfo(txId, curFile.lastModified());}

使用protobuf定义的fsimage文件的格式， 它包括了4个部分的信息

■ MAGIC： fsimage的文件头， 是“HDFSIMG1”这个字符串的二进制形式， MAGIC头标识了当前fsimage文件是使用protobuf格式序列化的。 FSImage类在读取fsimage文件时， 会先判断fsimage文件是否包含了MAGIC头， 如果包含了则使用protobuf格式反序列化fsimage文件。

■ SECTIONS： fsimage文件会将同一类型的Namenode元信息保存在一个section中，例如将文件系统元信息保存在NameSystemSection中， 将文件系统目录树中的所有INode信息保存在INodeSection中， 将快照信息保存在SnapshotSection中等。fsimage文件的第二个部分就是Namenode各类元信息对应的所有section, 每类section中都包含了对应Namenode元信息的属性.

■ FileSummary: FileSummary记录了fsimage文件的元信息， 以及fsimage文件保存的所有section的信息。 FileSummary中的ondiskVersion字段记录了fsimage文件的版本号（3.2.1 版本中这个字段的值为1） ， layoutVersion字段记录了当前HDFS的文件
系统布局版本号， codec字段记录了fsimage文件的压缩编码， sections字段则记录了fsimage文件中各个section字段的元信息， 每个fsimage文件中记录的section在FileSummary中都有一个与之对应的section字段。 FileSummary的section字段记录了对应的fsimage中section的名称、 在fsimage文件中的长度， 以及这个section在fsimage中的起始位置。 FSImage类在读取fsimage文件时， 会先从fsimage中读取出FileSummary部分， 然后利用FileSummary记录的元信息指导fsimage文件的反序列化操作。

■ FileSummaryLength： FileSummaryLength记录了FileSummary在fsimage文件中所占的长度， FSImage类在读取fsimage文件时， 会首先读取FileSummaryLength获取FileSummary部分的长度， 然后根据这个长度从fsimage中反序列化出FileSummary

public void load(File file, boolean requireSameLayoutVersion)throws IOException {Preconditions.checkState(impl == null, "Image already loaded!");InputStream is = null;try {is = Files.newInputStream(file.toPath());byte[] magic = new byte[FSImageUtil.MAGIC_HEADER.length];IOUtils.readFully(is, magic, 0, magic.length);// 判断头信息，是否是Protobuf格式if (Arrays.equals(magic, FSImageUtil.MAGIC_HEADER)) {FSImageFormatProtobuf.Loader loader = new FSImageFormatProtobuf.Loader(conf, fsn, requireSameLayoutVersion);impl = loader;loader.load(file);} else {Loader loader = new Loader(conf, fsn);impl = loader;loader.load(file);}} finally {IOUtils.cleanupWithLogger(LOG, is);}}

FSImageFormatProtobuf.load

最后也是最重要的步骤，通过 FSImageFormatProtobuf 对元数据进行反序列化，生成内存中的数据结构
序列化完成后，FsNameSystem实例中存储这反序列化后的元数据信息。

SectionName是一个枚举类一共记录了12种类型. [按写入的fsimage的顺序进行排列]

反序列化加载FsImage文件内容

private void loadInternal(RandomAccessFile raFile, FileInputStream fin)throws IOException {if (!FSImageUtil.checkFileFormat(raFile)) {throw new IOException("Unrecognized file format");}FileSummary summary = FSImageUtil.loadSummary(raFile);if (requireSameLayoutVersion && summary.getLayoutVersion() !=HdfsServerConstants.NAMENODE_LAYOUT_VERSION) {throw new IOException("Image version " + summary.getLayoutVersion() +" is not equal to the software version " +HdfsServerConstants.NAMENODE_LAYOUT_VERSION);}FileChannel channel = fin.getChannel();// inode加载器FSImageFormatPBINode.Loader inodeLoader = new FSImageFormatPBINode.Loader(fsn, this);FSImageFormatPBSnapshot.Loader snapshotLoader = new FSImageFormatPBSnapshot.Loader(fsn, this);ArrayList sections = Lists.newArrayList(summary.getSectionsList());Collections.sort(sections, new Comparator() {@Overridepublic int compare(FileSummary.Section s1, FileSummary.Section s2) {SectionName n1 = SectionName.fromString(s1.getName());SectionName n2 = SectionName.fromString(s2.getName());if (n1 == null) {return n2 == null ? 0 : -1;} else if (n2 == null) {return -1;} else {return n1.ordinal() - n2.ordinal();}}});StartupProgress prog = NameNode.getStartupProgress();/*** beginStep() and the endStep() calls do not match the boundary of the* sections. This is because that the current implementation only allows* a particular step to be started for once.*/Step currentStep = null;// 非常重要的参数，对于超大规模的集群，fsimage加载慢一直是通病，// 此参数可以对其进行优化，通过多现场去并行加载sectionboolean loadInParallel = enableParallelSaveAndLoad(conf);ExecutorService executorService = null;ArrayList subSections =getAndRemoveSubSections(sections);if (loadInParallel) {executorService = getParallelExecutorService();}for (FileSummary.Section s : sections) {channel.position(s.getOffset());InputStream in = new BufferedInputStream(new LimitInputStream(fin,s.getLength()));in = FSImageUtil.wrapInputStreamForCompression(conf,summary.getCodec(), in);String n = s.getName();SectionName sectionName = SectionName.fromString(n);if (sectionName == null) {throw new IOException("Unrecognized section " + n);}ArrayList stageSubSections;switch (sectionName) {case NS_INFO:loadNameSystemSection(in);break;case STRING_TABLE:loadStringTableSection(in);break;case INODE: {currentStep = new Step(StepType.INODES);prog.beginStep(Phase.LOADING_FSIMAGE, currentStep);stageSubSections = getSubSectionsOfName(subSections, SectionName.INODE_SUB);if (loadInParallel && (stageSubSections.size() > 0)) {inodeLoader.loadINodeSectionInParallel(executorService,stageSubSections, summary.getCodec(), prog, currentStep);} else {inodeLoader.loadINodeSection(in, prog, currentStep);}}break;case INODE_REFERENCE:snapshotLoader.loadINodeReferenceSection(in);break;case INODE_DIR:stageSubSections = getSubSectionsOfName(subSections, SectionName.INODE_DIR_SUB);if (loadInParallel && stageSubSections.size() > 0) {inodeLoader.loadINodeDirectorySectionInParallel(executorService,stageSubSections, summary.getCodec());} else {inodeLoader.loadINodeDirectorySection(in);}inodeLoader.waitBlocksMapAndNameCacheUpdateFinished();break;case FILES_UNDERCONSTRUCTION:inodeLoader.loadFilesUnderConstructionSection(in);break;case SNAPSHOT:snapshotLoader.loadSnapshotSection(in);break;case SNAPSHOT_DIFF:snapshotLoader.loadSnapshotDiffSection(in);break;case SECRET_MANAGER: {prog.endStep(Phase.LOADING_FSIMAGE, currentStep);Step step = new Step(StepType.DELEGATION_TOKENS);prog.beginStep(Phase.LOADING_FSIMAGE, step);loadSecretManagerSection(in, prog, step);prog.endStep(Phase.LOADING_FSIMAGE, step);}break;case CACHE_MANAGER: {Step step = new Step(StepType.CACHE_POOLS);prog.beginStep(Phase.LOADING_FSIMAGE, step);loadCacheManagerSection(in, prog, step);prog.endStep(Phase.LOADING_FSIMAGE, step);}break;case ERASURE_CODING:Step step = new Step(StepType.ERASURE_CODING_POLICIES);prog.beginStep(Phase.LOADING_FSIMAGE, step);loadErasureCodingSection(in);prog.endStep(Phase.LOADING_FSIMAGE, step);break;default:LOG.warn("Unrecognized section {}", n);break;}}if (executorService != null) {executorService.shutdown();}}

如下是 内存中的 FsImage 数据结构

FsImage内存数据结构

FileSummary.json展示

ondiskVersion: 1
layoutVersion: 4294967230
sections {name: "NS_INFO"length: 36offset: 8
}
sections {name: "ERASURE_CODING"length: 31offset: 44
}
sections {name: "INODE"length: 26174offset: 75
}
sections {name: "INODE_DIR"length: 1880offset: 26249
}
sections {name: "FILES_UNDERCONSTRUCTION"length: 0offset: 28129
}
sections {name: "SNAPSHOT"length: 5offset: 28129
}
sections {name: "INODE_REFERENCE"length: 0offset: 28134
}
sections {name: "SECRET_MANAGER"length: 9offset: 28134
}
sections {name: "CACHE_MANAGER"length: 7offset: 28143
}
sections {name: "STRING_TABLE"length: 102offset: 28150
}

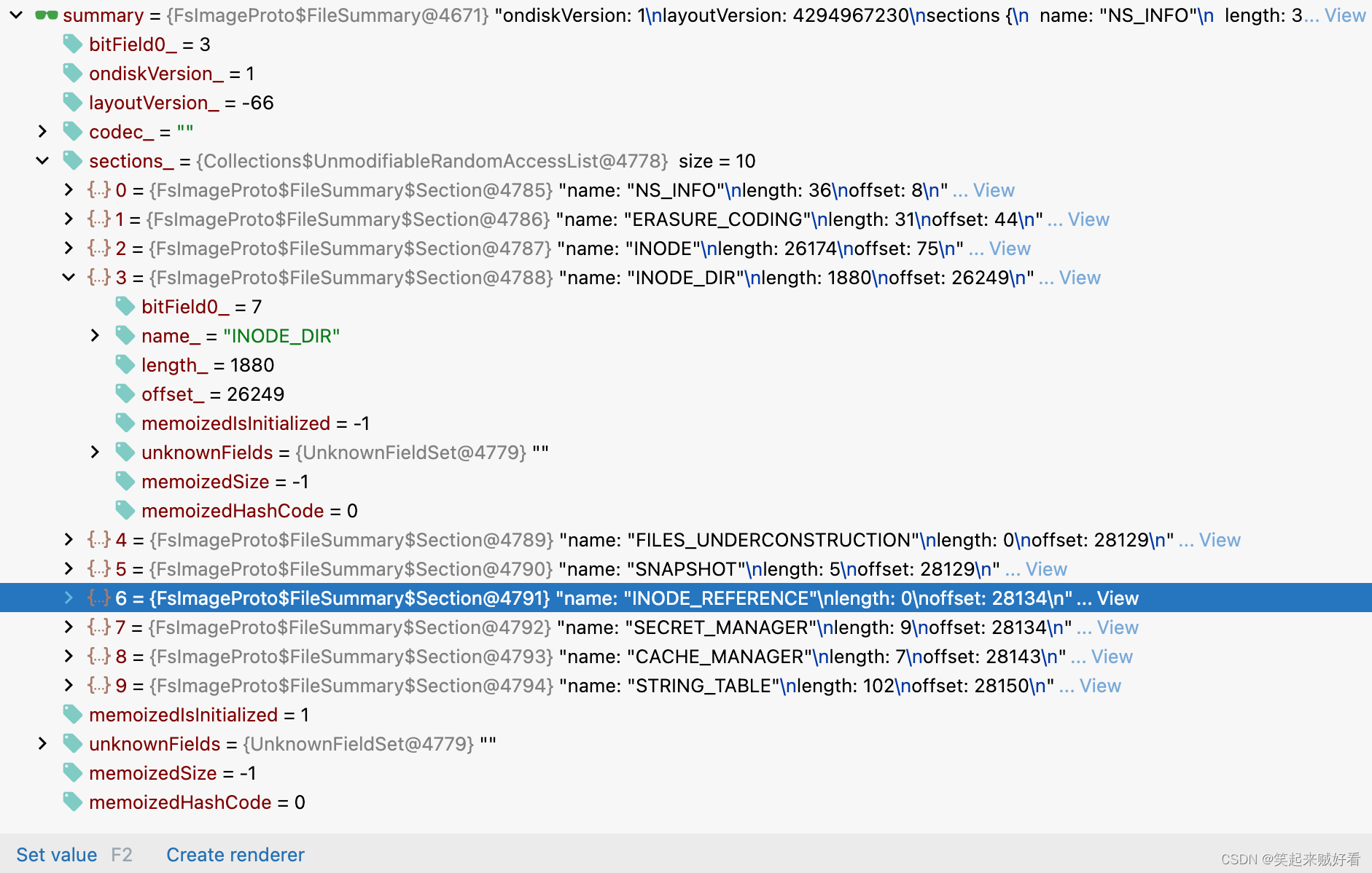

FileSummary的数据结构

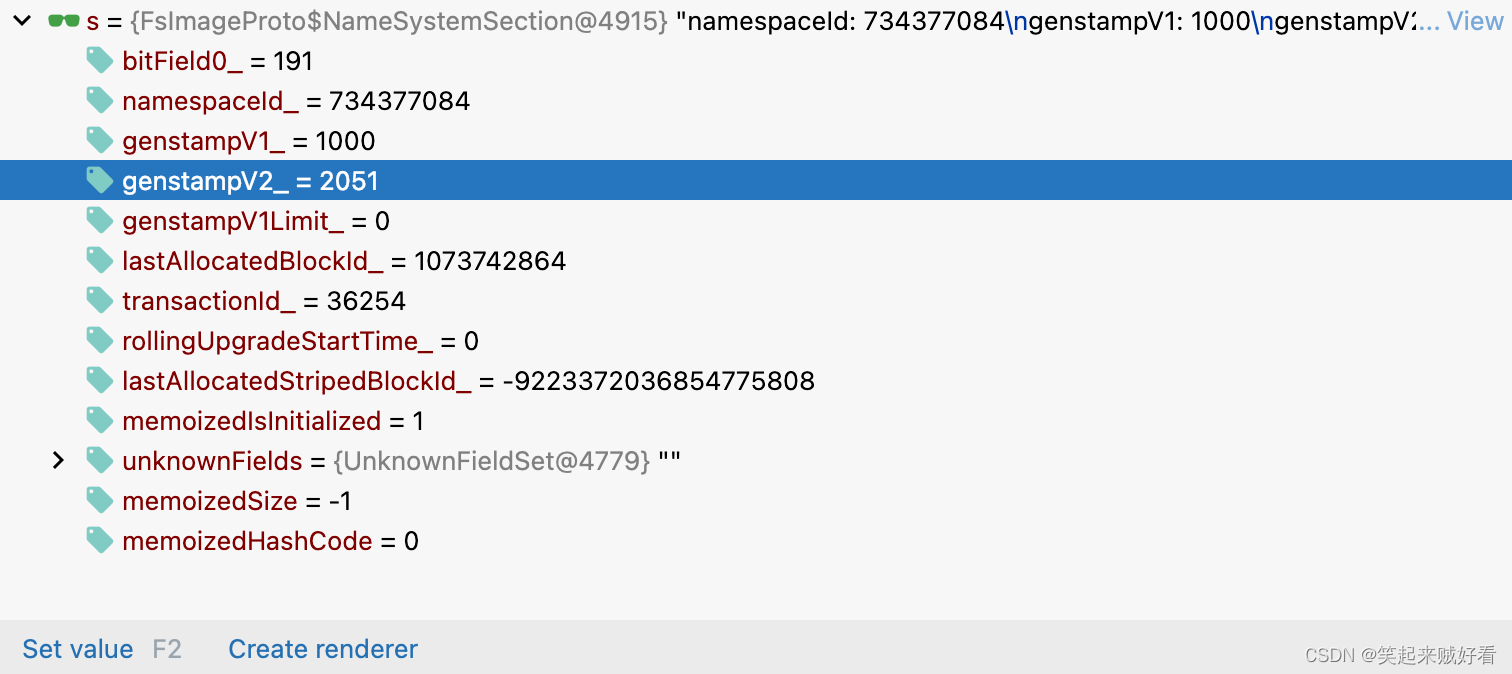

NameSystemSection的内存数据结构

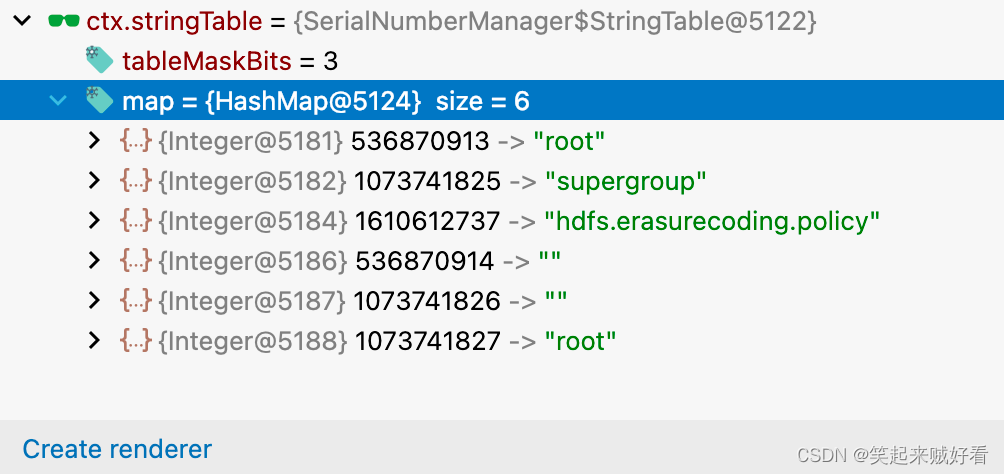

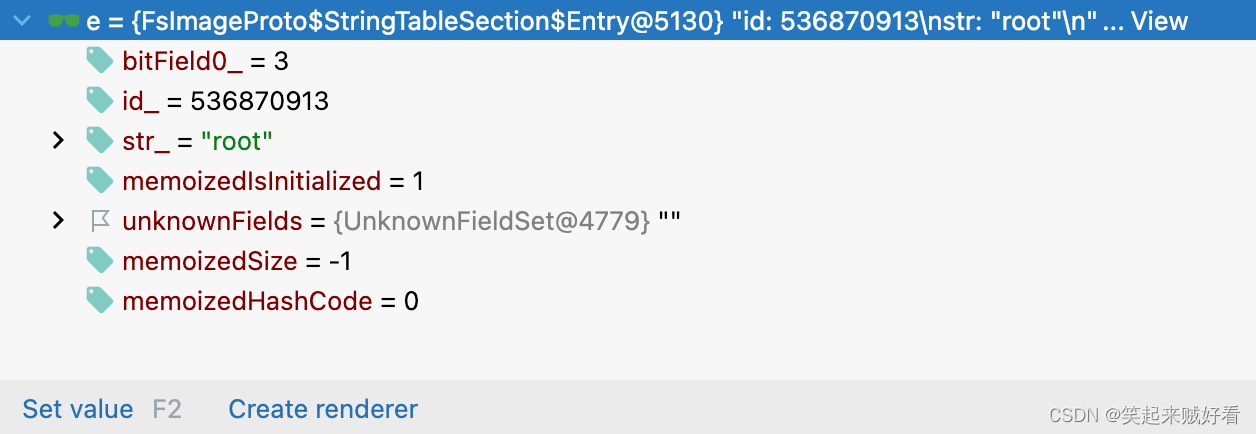

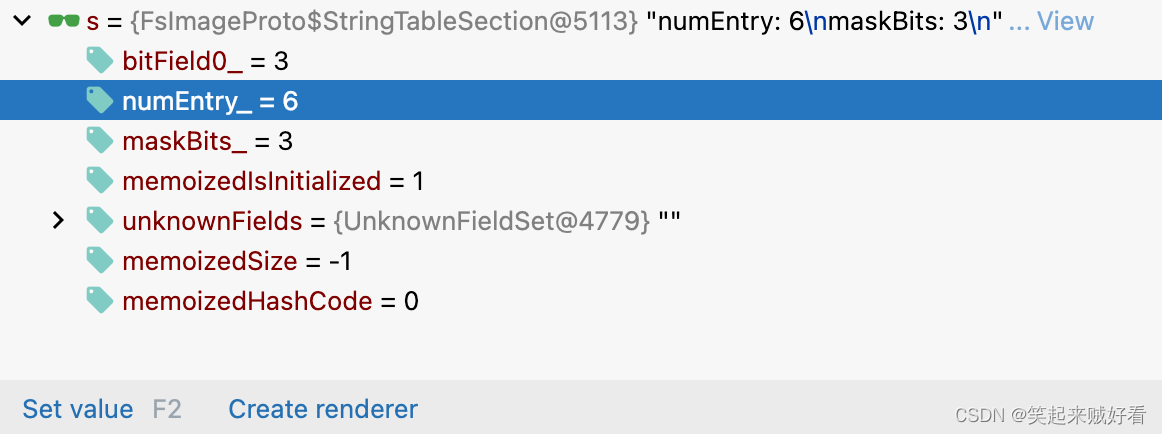

StringTable记录hdfs元数据的权限相关

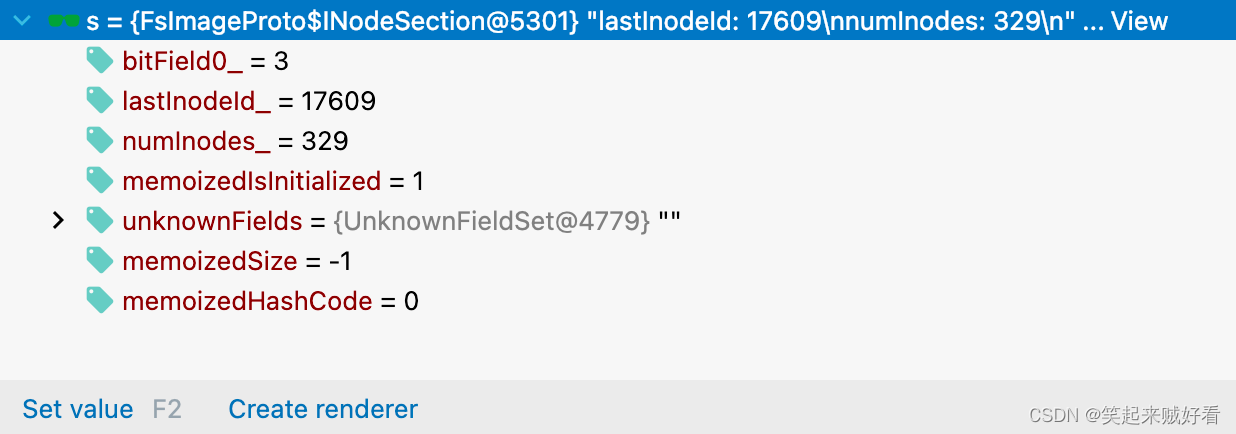

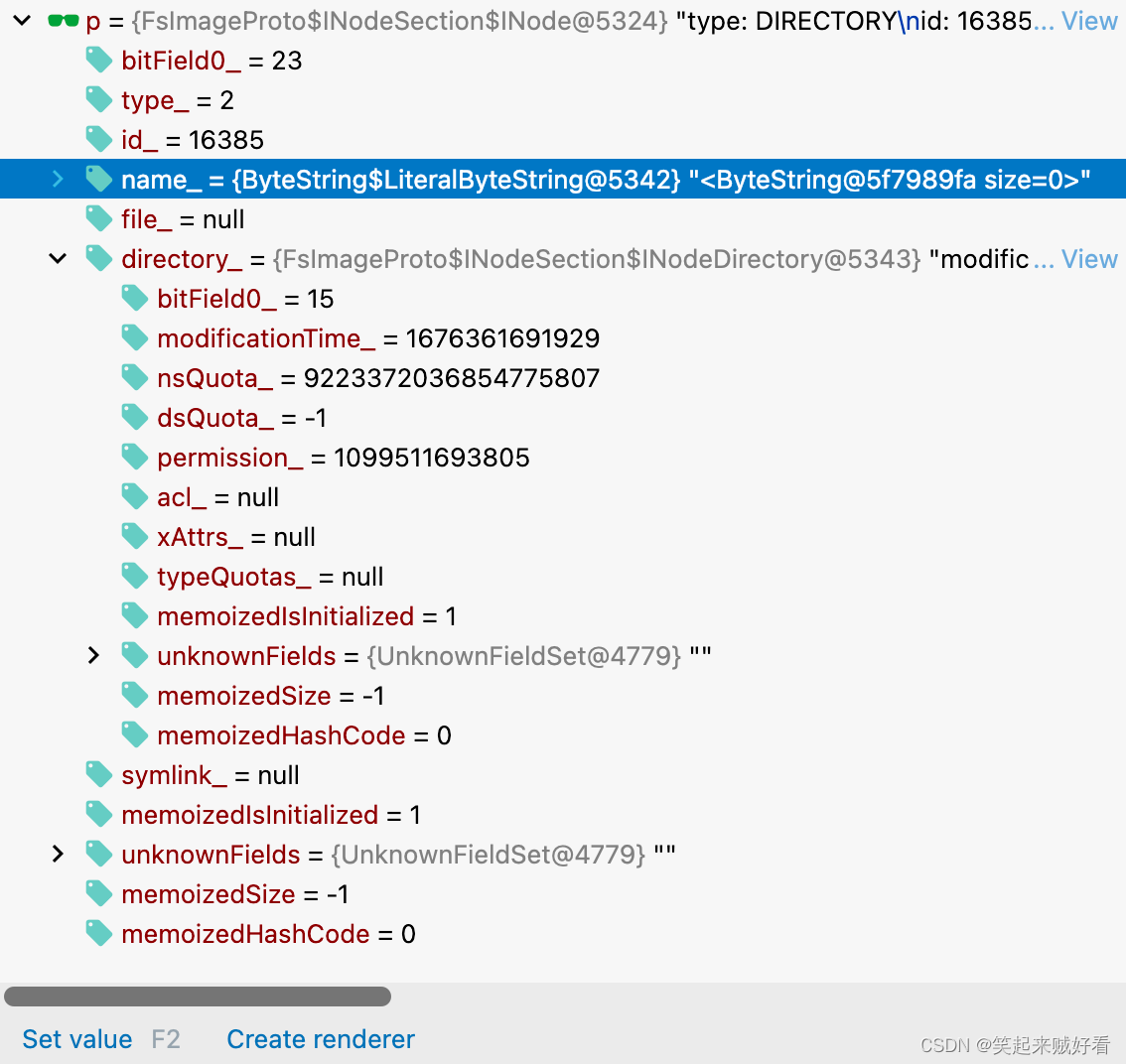

HDFS元数据中非常重要的 内容 INodeSection 结构
