使用VTK对网格输入特征进行可视化

• 引言
• 一、全部代码
• 二、可视化

引言

使用python调用VTK库对网格的输入特征进行可视化，方便后续实验与分析

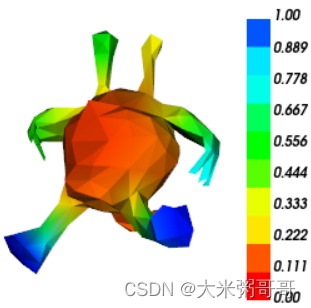

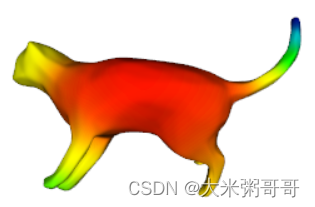

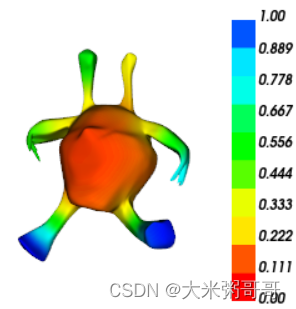

• 上图可视化的输入特征是热核特征HKS的第一个通道，也可对其他输入进行可视化
• 数据集可参考¹:三角网格(Triangular Mesh)分类数据集

一、全部代码

compute_hks_autoscale函数参考自²:DiffusionNet
VTK可视化代码参考³:VTK使用颜色映射标量数据

import numpy as np
import potpourri3d as pp3d
import scipy
import scipy.sparse.linalg
import vtkmodules.all as vtk
import torch
import os
os.environ["KMP_DUPLICATE_LIB_OK"] = "TRUE"class TriMesh:def __init__(self, file):# 属性self.file = file  # 文件完整路径self.filename = None  # 文件名称self.vs = []  # 坐标索引self.faces = []  # 顶点索引self.features = None  # 特征self.vs, self.faces = pp3d.read_mesh(file)self.faces_num = len(self.faces)def compute_hks_autoscale(self, eig_k, count=16):eps = 1e-8L = pp3d.cotan_laplacian(self.vs, self.faces, denom_eps=1e-10)massvec_np = pp3d.vertex_areas(self.vs, self.faces)massvec_np += eps * np.mean(massvec_np)L_eigsh = (L + scipy.sparse.identity(L.shape[0]) * eps).tocsc()massvec_eigsh = massvec_npMmat = scipy.sparse.diags(massvec_eigsh)eigs_sigma = epsfailcount = 0while True:try:# We would be happy here to lower tol or maxiter since we don't need these to be super precise, but for some reason those parameters seem to have no effectevals_np, evecs_np = scipy.sparse.linalg.eigsh(L_eigsh, k=eig_k, M=Mmat, sigma=eigs_sigma)# Clip off any eigenvalues that end up slightly negative due to numerical weirdnessevals_np = np.clip(evals_np, a_min=0., a_max=float('inf'))breakexcept Exception as e:print(e)if failcount > 3:raise ValueError("failed to compute eigendecomp")failcount += 1print("--- decomp failed; adding eps ===> count: " + str(failcount))L_eigsh = L_eigsh + scipy.sparse.identity(L.shape[0]) * (eps * 10 ** failcount)evals = torch.from_numpy(evals_np)evecs = torch.from_numpy(evecs_np)# these scales roughly approximate those suggested in the hks paperscales = torch.logspace(-2, 0., steps=count, device=evals.device, dtype=evals.dtype)return self.compute_hks(evals, evecs, scales)def compute_hks(self, evals, evecs, scales):# expand batchif len(evals.shape) == 1:expand_batch = Trueevals = evals.unsqueeze(0)evecs = evecs.unsqueeze(0)scales = scales.unsqueeze(0)else:expand_batch = False# TODO could be a matmulpower_coefs = torch.exp(-evals.unsqueeze(1) * scales.unsqueeze(-1)).unsqueeze(1)  # (B,1,S,K)terms = power_coefs * (evecs * evecs).unsqueeze(2)  # (B,V,S,K)out = torch.sum(terms, dim=-1)  # (B,V,S)if expand_batch:return out.squeeze(0)else:return outdef show_point_color(mesh: TriMesh, seg=[], Subdivision=False):# 1. 添加数据points = vtk.vtkPoints()pColor = vtk.vtkFloatArray()for v in mesh.vs:points.InsertNextPoint(v)pColor.InsertNextValue(v[0])if len(seg) > 0:pColor = vtk.vtkFloatArray()for s in seg:pColor.InsertNextValue(s)polys = vtk.vtkCellArray()for f in mesh.faces:polys.InsertNextCell(len(f), f)# 2. 创建PolyDatacube = vtk.vtkPolyData()cube.SetPoints(points)cube.SetPolys(polys)cube.GetPointData().SetScalars(pColor)# 2.5细分if Subdivision:l = vtk.vtkLinearSubdivisionFilter()  # 先linearl.SetInputData(cube)l.SetNumberOfSubdivisions(1)l.Update()loop = vtk.vtkLoopSubdivisionFilter()  # 后looploop.SetInputConnection(l.GetOutputPort())loop.SetNumberOfSubdivisions(5)loop.Update()# lut = vtk.vtkLookupTable()# lut.SetHueRange(0.125, 0.666)  # 映射的颜色变换参数（自己调颜色）mapper = vtk.vtkPolyDataMapper()mapper.ScalarVisibilityOn()mapper.SetColorModeToMapScalars()# mapper.SetLookupTable(lut)mapper.SetScalarRange(0, 1)if Subdivision:mapper.SetInputConnection(loop.GetOutputPort())else:mapper.SetInputData(cube)# 3.创建Actoractor = vtk.vtkActor()actor.SetMapper(mapper)# actor.GetProperty().SetEdgeColor(0, 0, 0)# actor.GetProperty().SetEdgeVisibility(1)    # 显示边# 3.5 加入colormapscalarBar = vtk.vtkScalarBarActor()  # 设置color_barscalarBar.SetLookupTable(mapper.GetLookupTable())scalarBar.SetTitle("")scalarBar.SetNumberOfLabels(10)  # 设置要显示的刻度标签数。自己设定色带的位置scalarBar.SetMaximumNumberOfColors(10)# # 设置标题和条形之间的边距# scalarBar.SetVerticalTitleSeparation(10)# # 设置标题颜色scalarBar.DrawTickLabelsOn()scalarBar.GetTitleTextProperty().SetColor(0, 0, 0)scalarBar.GetLabelTextProperty().SetColor(0, 0, 0)# 4.创建Rendererrenderer = vtk.vtkRenderer()renderer.SetBackground(1, 1, 1)  # 背景白色renderer.AddActor(actor)  # 将actor加入renderer.ResetCamera()  # 调整显示renderer.AddActor2D(scalarBar)# 5.渲染窗口renWin = vtk.vtkRenderWindow()renWin.AddRenderer(renderer)renWin.Render()# 6.交互renWinInteractor = vtk.vtkRenderWindowInteractor()renWinInteractor.SetRenderWindow(renWin)renWinInteractor.SetInteractorStyle(vtk.vtkInteractorStyleTrackballCamera())renWinInteractor.Start()if __name__ == '__main__':# 读取网格mesh = TriMesh('../../../datasets/shrec_10/alien/train/T5.obj')  # 1 13 15# 计算特征face_hks = mesh.compute_hks_autoscale(eig_k=4).numpy()# 某一通道的归一化face_hks = face_hks[:, 0] / np.max(face_hks[:, 0])# 可视化show_point_color(mesh, face_hks, False)

二、可视化

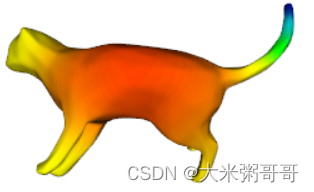

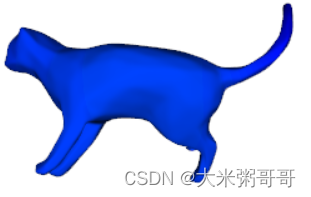

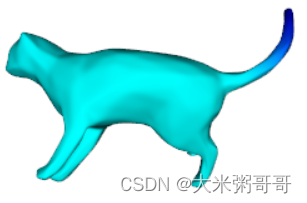

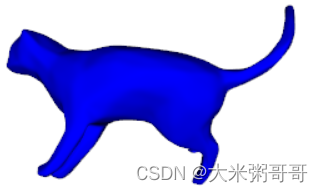

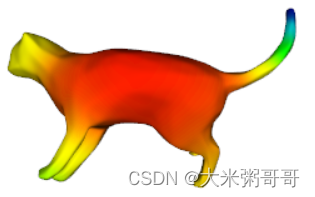

1. eig_k=1，4， 16， 64的可视化 (cat/train/T98.obj)



• eig_k=1毫无意义，就可视化而言eig_k=4效果是最好的

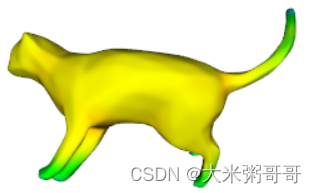

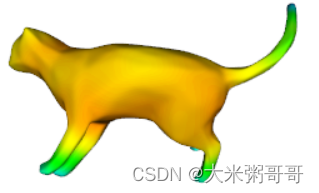

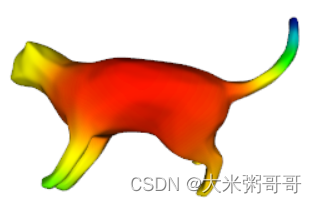

2. 固定eig_k=4，取特征通道=0，4，8，12，14，15




• 特征通道取前几个即可，最后的几个维度对于形状特征区分度较低

3. eig_k=4，32， 64， 128的可视化 (cubes/tree/train/tree_20.obj)


• 对于Cubes这种内嵌式的模型，少量的eig_k并不能很好的体现内嵌模型的特征
