前言

本节内容我们使用docker-compose一键式搭建一套fastdfs服务，实现docker环境下的文件存储服务，在开始本节内容之前，我们需要提前安装好docker和docker-compose环境。fastdfs是一套分布式的文件存储服务系统，主要有tracker和storage俩大组件组成，tracker服务完成文件的调度和管控，storage主要用来存储文件和备份。本机内容使用的docker镜像是season/fastdfs:1.2。

正文

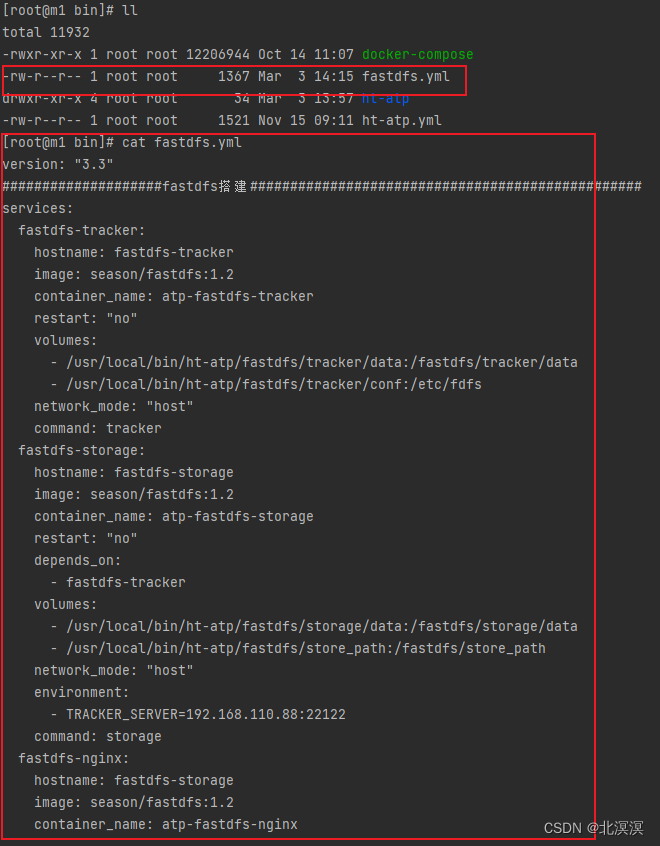

①docker-compose环境下的fastdfs服务安装脚本fastdfs.yml

version: "3.3"
####################fastdfs搭建#################################################
services:fastdfs-tracker:hostname: fastdfs-trackerimage: season/fastdfs:1.2container_name: atp-fastdfs-trackerrestart: "no"volumes:- /usr/local/bin/ht-atp/fastdfs/tracker/data:/fastdfs/tracker/data- /usr/local/bin/ht-atp/fastdfs/tracker/conf:/etc/fdfsnetwork_mode: "host"command: trackerfastdfs-storage:hostname: fastdfs-storageimage: season/fastdfs:1.2container_name: atp-fastdfs-storagerestart: "no"depends_on:- fastdfs-trackervolumes:- /usr/local/bin/ht-atp/fastdfs/fdfs_conf/storage.conf:/fdfs_conf/storage.conf- /usr/local/bin/ht-atp/fastdfs/storage/data:/fastdfs/storage/data- /usr/local/bin/ht-atp/fastdfs/store_path:/fastdfs/store_pathnetwork_mode: "host"environment:- TRACKER_SERVER=192.168.110.88:22122command: storagefastdfs-nginx:hostname: fastdfs-storageimage: season/fastdfs:1.2container_name: atp-fastdfs-nginxrestart: "no"volumes:- /usr/local/bin/ht-atp/fastdfs/nginx/conf/nginx.conf:/etc/nginx/conf/nginx.conf- /usr/local/bin/ht-atp/fastdfs/store_path:/fastdfs/store_pathdepends_on:- fastdfs-storagenetwork_mode: "host"environment:- TRACKER_SERVER=192.168.110.88:22122command: nginx

②tracker服务映射目录创建

命令：

- mkdir -p /usr/local/bin/ht-atp/fastdfs/tracker/data

- mkdir -p /usr/local/bin/ht-atp/fastdfs/tracker/conf

③storage服务映射目录创建

命令：

服务数据存储目录：mkdir -p /usr/local/bin/ht-atp/fastdfs/storage/data

文件存储目录：mkdir -p /usr/local/bin/ht-atp/fastdfs/store_path

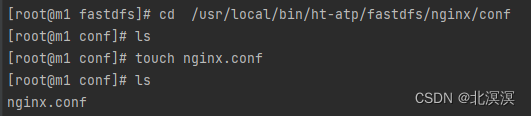

④ nginx服务配置文件映射目录创建及配置文件创建

命令：
创建nginx映射目录： mkdir -p /usr/local/bin/ht-atp/fastdfs/nginx/conf

创建nginx配置文件：touch nginx.conf

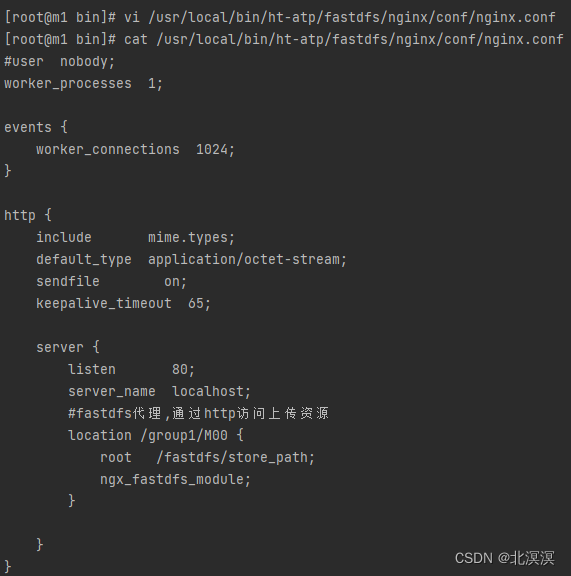

⑤配置nginx代理,使用http访问文件存储服务资源nginx.conf

#user  nobody;
worker_processes  1;events {worker_connections  1024;
}http {include       mime.types;default_type  application/octet-stream;sendfile        on;keepalive_timeout  65;server {listen       80;server_name  localhost;#fastdfs代理,通过http访问上传资源location /group1/M00 {root   /fastdfs/store_path;ngx_fastdfs_module;}}
}
