图像分割评估指标

• AJI
• DICE
• Panoptic Quality

计算病理学——图像分割的评价指标梳理

AJI

AJI（Aggregated Jaccard Index ）增强版的IOU，基于连通域的图像分割结果评判
Aggregated Jaccard Index

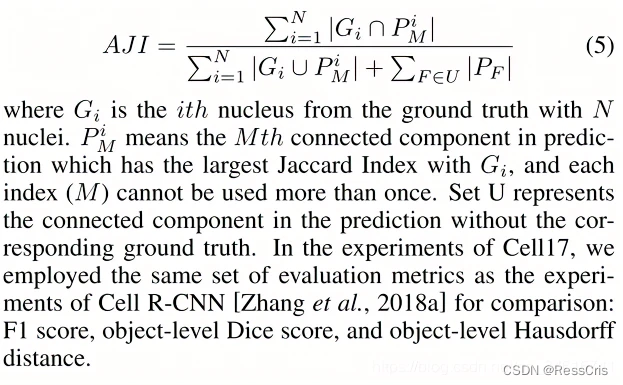

公式：

关键词在于，连通域。具体讲解可以参考参考链接。

计算代码参考 hovernet 中的实现 (https://github.com/vqdang/hover_net/tree/master/metrics)

def get_fast_aji_plus(true, pred):"""AJI+, an AJI version with maximal unique pairing to obtain overall intersecion.Every prediction instance is paired with at most 1 GT instance (1 to 1) mapping, unlike AJI where a prediction instance can be paired against many GT instances (1 to many).Remaining unpaired GT and Prediction instances will be added to the overall union.The 1 to 1 mapping prevents AJI's over-penalisation from happening.Fast computation requires instance IDs are in contiguous orderding i.e [1, 2, 3, 4] not [2, 3, 6, 10]. Please call `remap_label` before hand and `by_size` flag has no effect on the result.给出的 true, pred 中的数值必须是连续的 0,1,2,3这种，不能是跳跃的整数。"""true = np.copy(true)  # ? do we need thispred = np.copy(pred)true_id_list = list(np.unique(true))pred_id_list = list(np.unique(pred))true_masks = [None,]for t in true_id_list[1:]:t_mask = np.array(true == t, np.uint8)true_masks.append(t_mask)pred_masks = [None,]for p in pred_id_list[1:]:p_mask = np.array(pred == p, np.uint8)pred_masks.append(p_mask)# prefill with valuepairwise_inter = np.zeros([len(true_id_list) - 1, len(pred_id_list) - 1], dtype=np.float64)pairwise_union = np.zeros([len(true_id_list) - 1, len(pred_id_list) - 1], dtype=np.float64)# caching pairwisefor true_id in true_id_list[1:]:  # 0-th is backgroundt_mask = true_masks[true_id]pred_true_overlap = pred[t_mask > 0]pred_true_overlap_id = np.unique(pred_true_overlap)pred_true_overlap_id = list(pred_true_overlap_id)for pred_id in pred_true_overlap_id:if pred_id == 0:  # ignorecontinue  # overlaping backgroundp_mask = pred_masks[pred_id]total = (t_mask + p_mask).sum()inter = (t_mask * p_mask).sum()pairwise_inter[true_id - 1, pred_id - 1] = interpairwise_union[true_id - 1, pred_id - 1] = total - inter#pairwise_iou = pairwise_inter / (pairwise_union + 1.0e-6)#### Munkres pairing to find maximal unique pairingpaired_true, paired_pred = linear_sum_assignment(-pairwise_iou)### extract the paired cost and remove invalid pairpaired_iou = pairwise_iou[paired_true, paired_pred]# now select all those paired with iou != 0.0 i.e have intersectionpaired_true = paired_true[paired_iou > 0.0]paired_pred = paired_pred[paired_iou > 0.0]paired_inter = pairwise_inter[paired_true, paired_pred]paired_union = pairwise_union[paired_true, paired_pred]paired_true = list(paired_true + 1)  # index to instance IDpaired_pred = list(paired_pred + 1)overall_inter = paired_inter.sum()overall_union = paired_union.sum()# add all unpaired GT and Prediction into the unionunpaired_true = np.array([idx for idx in true_id_list[1:] if idx not in paired_true])unpaired_pred = np.array([idx for idx in pred_id_list[1:] if idx not in paired_pred])for true_id in unpaired_true:overall_union += true_masks[true_id].sum()for pred_id in unpaired_pred:overall_union += pred_masks[pred_id].sum()#aji_score = overall_inter / overall_unionreturn aji_score

举例子我们需要计算的 true, pred 分别为

true = np.array([[1, 1, 1],[0, 1, 1],[1, 0, 2]])
pred = np.array([[0, 1, 1],[0, 0, 0],[0, 0, 1]])

计算步骤为
1、对真实值的每个 instance_id(除了背景0），遍历 pred 中的不同 instance，计算各自的intersection，union, IoU
2、对每个 instance_id, 取 IoU 最大的形成配对

然后把配好对的 intersection加在分子上，再把配好对的 union 加在分母上

3、将没有配对的部分加在分母上

回到刚刚的案例

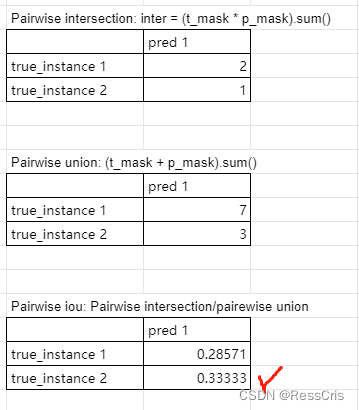

因为 true 除了0之外有两个 instance id，遍历pred计算两两 intersection，两两 union 分别为

由 IoU 最大选择配对，即 true_instance2 和 pred 1配对成功。

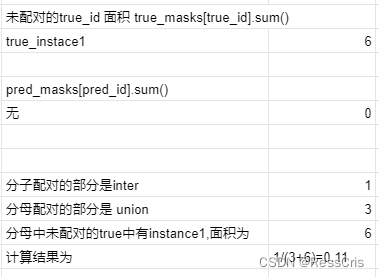

这里的计算和公式似乎有点不符，公式中未配对的部分计算的是 pred 中的id，但是代码中计算的是 true 中的id？这块的理解需要注意。

DICE

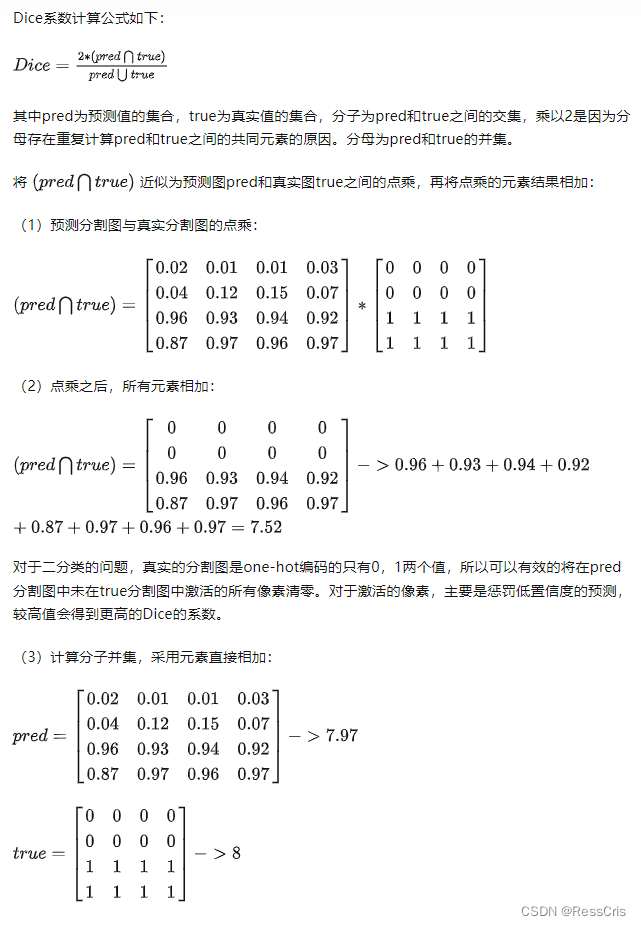

Metric评价指标-Dice 与损失函数-Dice Loss

hovernet 中给出了两份代码计算

def get_dice_1(true, pred):"""Traditional dice."""# cast to binary 1sttrue = np.copy(true)pred = np.copy(pred)true[true > 0] = 1pred[pred > 0] = 1inter = true * preddenom = true + predreturn 2.0 * np.sum(inter) / np.sum(denom)####
def get_dice_2(true, pred):"""Ensemble Dice as used in Computational Precision Medicine Challenge."""true = np.copy(true)pred = np.copy(pred)true_id = list(np.unique(true))pred_id = list(np.unique(pred))# remove background aka id 0true_id.remove(0)pred_id.remove(0)total_markup = 0total_intersect = 0for t in true_id:t_mask = np.array(true == t, np.uint8)for p in pred_id:p_mask = np.array(pred == p, np.uint8)intersect = p_mask * t_maskif intersect.sum() > 0:total_intersect += intersect.sum()total_markup += t_mask.sum() + p_mask.sum()return 2 * total_intersect / total_markup

get_dice_1 将所有不是大于0的数都设置为1，然后进行计算。
get_dice_2 则分别处理了不同的 instance，提取每个 instance 的mask分别计算，相当于取了一个加权平均。

不过看其他的计算方法中，在 pred 中可以是预测的概率，直接点乘法，而不需要转换为 mask 0,1 取值的方式。

参考 dice loss 的实现

def dice_loss(true, pred, smooth=1e-3):"""`pred` and `true` must be of torch.float32. Assuming of shape NxHxWxC."""inse = torch.sum(pred * true, (0, 1, 2))l = torch.sum(pred, (0, 1, 2))r = torch.sum(true, (0, 1, 2))loss = 1.0 - (2.0 * inse + smooth) / (l + r + smooth)loss = torch.sum(loss)return loss

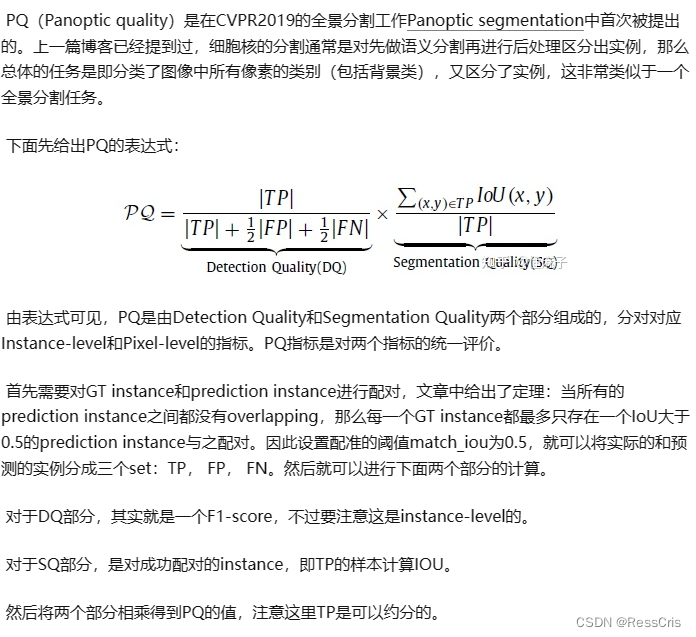

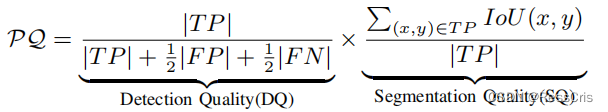

Panoptic Quality

来自论文 hovernet

在 AJI 中计算的这个示例中，由于两个 inter 值都不超过 0.5, 所以值都是0.
所以可以看到， PQ值首先对IoU的设定设置了门槛。

def get_fast_pq(true, pred, match_iou=0.5):"""`match_iou` is the IoU threshold level to determine the pairing betweenGT instances `p` and prediction instances `g`. `p` and `g` is a pairif IoU > `match_iou`. However, pair of `p` and `g` must be unique (1 prediction instance to 1 GT instance mapping).If `match_iou` < 0.5, Munkres assignment (solving minimum weight matchingin bipartite graphs) is caculated to find the maximal amount of unique pairing. If `match_iou` >= 0.5, all IoU(p,g) > 0.5 pairing is proven to be unique andthe number of pairs is also maximal.    Fast computation requires instance IDs are in contiguous orderding i.e [1, 2, 3, 4] not [2, 3, 6, 10]. Please call `remap_label` beforehand and `by_size` flag has no effect on the result.Returns:[dq, sq, pq]: measurement statistic[paired_true, paired_pred, unpaired_true, unpaired_pred]: pairing information to perform measurement"""assert match_iou >= 0.0, "Cant' be negative"true = np.copy(true)pred = np.copy(pred)true_id_list = list(np.unique(true))pred_id_list = list(np.unique(pred))true_masks = [None,]for t in true_id_list[1:]:t_mask = np.array(true == t, np.uint8)true_masks.append(t_mask)pred_masks = [None,]for p in pred_id_list[1:]:p_mask = np.array(pred == p, np.uint8)pred_masks.append(p_mask)# prefill with valuepairwise_iou = np.zeros([len(true_id_list) - 1, len(pred_id_list) - 1], dtype=np.float64)# caching pairwise ioufor true_id in true_id_list[1:]:  # 0-th is backgroundt_mask = true_masks[true_id]pred_true_overlap = pred[t_mask > 0]pred_true_overlap_id = np.unique(pred_true_overlap)pred_true_overlap_id = list(pred_true_overlap_id)for pred_id in pred_true_overlap_id:if pred_id == 0:  # ignorecontinue  # overlaping backgroundp_mask = pred_masks[pred_id]total = (t_mask + p_mask).sum()inter = (t_mask * p_mask).sum()iou = inter / (total - inter)pairwise_iou[true_id - 1, pred_id - 1] = iouif match_iou >= 0.5:paired_iou = pairwise_iou[pairwise_iou > match_iou]pairwise_iou[pairwise_iou <= match_iou] = 0.0paired_true, paired_pred = np.nonzero(pairwise_iou)paired_iou = pairwise_iou[paired_true, paired_pred]paired_true += 1  # index is instance id - 1paired_pred += 1  # hence return back to originalelse:  # * Exhaustive maximal unique pairing#### Munkres pairing with scipy library# the algorithm return (row indices, matched column indices)# if there is multiple same cost in a row, index of first occurence# is return, thus the unique pairing is ensure# inverse pair to get high IoU as minimumpaired_true, paired_pred = linear_sum_assignment(-pairwise_iou)### extract the paired cost and remove invalid pairpaired_iou = pairwise_iou[paired_true, paired_pred]# now select those above threshold level# paired with iou = 0.0 i.e no intersection => FP or FNpaired_true = list(paired_true[paired_iou > match_iou] + 1)paired_pred = list(paired_pred[paired_iou > match_iou] + 1)paired_iou = paired_iou[paired_iou > match_iou]# get the actual FP and FNunpaired_true = [idx for idx in true_id_list[1:] if idx not in paired_true]unpaired_pred = [idx for idx in pred_id_list[1:] if idx not in paired_pred]# print(paired_iou.shape, paired_true.shape, len(unpaired_true), len(unpaired_pred))#tp = len(paired_true)fp = len(unpaired_pred)fn = len(unpaired_true)# get the F1-score i.e DQdq = tp / (tp + 0.5 * fp + 0.5 * fn)# get the SQ, no paired has 0 iou so not impactsq = paired_iou.sum() / (tp + 1.0e-6)return [dq, sq, dq * sq], [paired_true, paired_pred, unpaired_true, unpaired_pred]

计算步骤
1、和 AJI 一样，都是先计算两两 pairwise_iou
2、根据 IoU > 0.5, 选择好配对.
3、计算F1score， SQ，得到结果。
