在上篇文章中我们已经通过Graphics2D绘制了大部分的形状，但是在现实需求中，可能需要我们绘制各式各样的形状，这个时候我们就需要用到GeneralPath这个类。

上篇文章传送门：https://blog.csdn.net/u011837804/article/details/129504353

本篇文章我们讲解GeneralPath类的详细使用方法，调用方法说明，以及通过绘制绘制不规则形状、绘制不规则形状并且自动闭合、绘制菱形、绘制五角星实例代码详解绘制任意形状。

其中绘制五角星是真的复杂，因为五角星有10个坐标点需要动态计算，但是考虑到自己国家的国徽必须绘制出来，经过几天的学习研究，总于搞定，吐血分享出来，全网几乎找不到Java绘制的参考点，如果觉得有用的朋友一定点赞加关注，感谢。

GeneralPath构造函数说明

    /*** Constructs a new {@code GeneralPath} object with the specified* winding rule and the specified initial capacity to store path* coordinates.* This number is an initial guess as to how many path segments* will be added to the path, but the storage is expanded as* needed to store whatever path segments are added.** @param rule the winding rule   绕线规则（没有太懂，两个枚举没看出不一致的地方）* @param initialCapacity the estimate for the number of path segments*                        in the path 初始整个绘制过程中会绘制几条线* @throws IllegalArgumentException if {@code rule} is not either*         {@link #WIND_EVEN_ODD} or {@link #WIND_NON_ZERO}* @throws NegativeArraySizeException if {@code initialCapacity} is*         negative* @see #WIND_EVEN_ODD* @see #WIND_NON_ZERO* @since 1.2*/public GeneralPath(int rule, int initialCapacity) {super(rule, initialCapacity);}

要创建空GeneralPath实例调用new GeneralPath()，然后使用以下方法向形状添加线段：

• moveTo(float x, float y)– 将路径的当前点移动到给定点

假如当前画笔是在（10,10）坐标位置，直接将画笔移动至（x,y）坐标点，注意是移动，这两点之间不划线

• lineTo(float x, float y)– 向当前路径添加线段

假如当前画笔是在（10,10）坐标位置，直接将画笔移动至（x,y）坐标点，并且在(10,10)到(x,y)之间画一条线

• quadTo(float ctrlx, float ctrly, float x2, floaty2)– 将二次曲线段添加到当前路径

• curveTo(float ctrlx1, float ctrly1, float ctrlx2, float ctrly2, float x3, floaty3)– 将三次曲线段添加到当前路径

• closePath()– 关闭当前路径

就是将开始坐标和结束坐标用线连接起来

下面我们看几个实例

①、实例一：绘制不规则形状

代码：

        BufferedImage image = loadImage();Graphics2D graphics2D = image.createGraphics();graphics2D.setColor(Color.RED);/*** 设置需要绘制的点* x2Points和y2Points 两个数组长度一直，相同下标数值分别表示一个点的x和y轴* 本例有4个点（0,0) (100,50) (0,50) (100,0)*/int x2Points[] = {0, 100, 0, 100};int y2Points[] = {0, 50, 50, 0};GeneralPath polyline =new GeneralPath(GeneralPath.WIND_NON_ZERO, x2Points.length);//画笔移动至 (0,0)坐标polyline.moveTo(x2Points[0], y2Points[0]);//然后从 (0,0)坐标开始 按顺序 绘制到目标点的线for (int index = 1; index < x2Points.length; index++) {polyline.lineTo(x2Points[index], y2Points[index]);}graphics2D.draw(polyline);graphics2D.dispose();image.flush();ImgUtil.write(image, new File(SAVE_FILE_PATH + "GeneralPath1.png"));

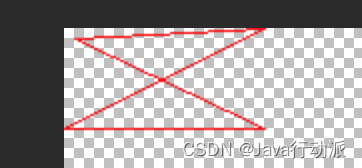

效果：

②、实例二：绘制不规则形状并且闭合

代码：相比实例一多出了”polyline.closePath();“效果就不一致

        BufferedImage image = loadImage();Graphics2D graphics2D = image.createGraphics();graphics2D.setColor(Color.RED);/*** 设置需要绘制的点* x2Points和y2Points 两个数组长度一直，相同下标数值分别表示一个点的x和y轴* 本例有4个点（0,0) (100,50) (0,50) (100,0)*/int x2Points[] = {5, 100, 0, 100};int y2Points[] = {5, 50, 50, 0};GeneralPath polyline =new GeneralPath(GeneralPath.WIND_NON_ZERO, x2Points.length);//画笔移动至 (0,0)坐标polyline.moveTo(x2Points[0], y2Points[0]);//然后从 (0,0)坐标开始 按顺序 绘制到目标点的线for (int index = 1; index < x2Points.length; index++) {polyline.lineTo(x2Points[index], y2Points[index]);}polyline.closePath();graphics2D.draw(polyline);graphics2D.dispose();image.flush();ImgUtil.write(image, new File(SAVE_FILE_PATH + "GeneralPath2.png"));

③、实例三：绘制菱形

代码：

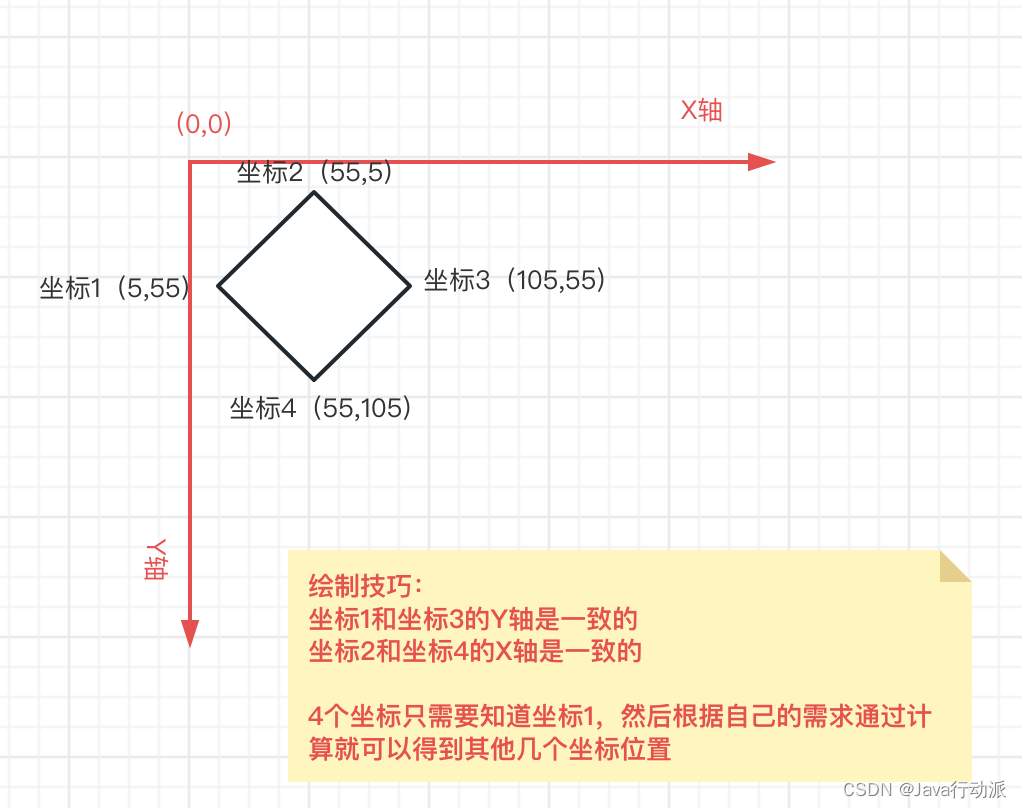

BufferedImage image = loadImage();Graphics2D graphics2D = image.createGraphics();graphics2D.setColor(Color.RED);/*** 设置需要绘制的点* x2Points和y2Points 两个数组长度一直，相同下标数值分别表示一个点的x和y轴* 本例有4个点（5,55) (55,5) (105,55) (55,105)*/int x2Points[] = {5, 55, 105, 55};int y2Points[] = {55, 5, 55, 105};GeneralPath polyline =new GeneralPath(GeneralPath.WIND_NON_ZERO, x2Points.length);//画笔移动至 (0,0)坐标polyline.moveTo(x2Points[0], y2Points[0]);//然后从 (0,0)坐标开始 按顺序 绘制到目标点的线for (int index = 1; index < x2Points.length; index++) {polyline.lineTo(x2Points[index], y2Points[index]);}polyline.closePath();graphics2D.draw(polyline);graphics2D.dispose();image.flush();ImgUtil.write(image, new File(SAVE_FILE_PATH + "GeneralPath3.png"));

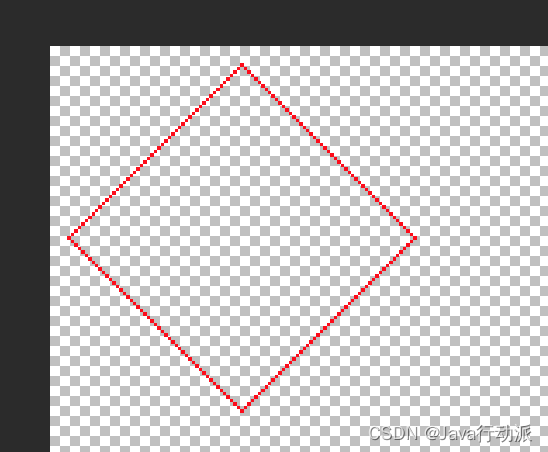

绘制效果：

④、实例四：绘制五角星

五角星的绘制复杂的地方是在10个坐标点的计算，直接上代码

计算五角星10个坐标点的方法代码

/*** 计算五角星10个坐标位置** @param centerX 五角星中心点X轴* @param centerY 五角星中心点Y轴* @param x2Points  存储五角星10个点X轴* @param y2Points  存储五角星10个点Y轴*                  需要注意的是 第一个坐标必须指定* @return void* @author liuchao* @date 2023/3/14*/private void calculateFivePointedStarPoint(double centerX, double centerY, double x2Points[], double y2Points[]) {//圆周率float pi = 3.141592653F;x2Points[1] = centerX - (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.cos((float) 36 / 360 * 2 * pi + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[1] = centerY + (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.sin((float) 36 / 360 * 2 * pi + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[2] = centerX - (float) 30 *Math.cos((float) 36 / 360 * 2 * pi * 2 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[2] = centerY + (float) 30 *Math.sin((float) 36 / 360 * 2 * pi * 2 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[3] = centerX - (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.cos((float) 36 / 360 * 2 * pi * 3 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[3] = centerY + (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.sin((float) 36 / 360 * 2 * pi * 3 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[4] = centerX - (float) 30 *Math.cos((float) 36 / 360 * 2 * pi * 4 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[4] = centerY + (float) 30 *Math.sin((float) 36 / 360 * 2 * pi * 4 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[5] = centerX - (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.cos((float) 36 / 360 * 2 * pi * 5 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[5] = centerY + (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.sin((float) 36 / 360 * 2 * pi * 5 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[6] = centerX - (float) 30 *Math.cos((float) 36 / 360 * 2 * pi * 6 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[6] = centerY + (float) 30 *Math.sin((float) 36 / 360 * 2 * pi * 6 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[7] = centerX - (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.cos((float) 36 / 360 * 2 * pi * 7 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[7] = centerY + (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.sin((float) 36 / 360 * 2 * pi * 7 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[8] = centerX - (float) 30 *Math.cos((float) 36 / 360 * 2 * pi * 8 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[8] = centerY + (float) 30 *Math.sin((float) 36 / 360 * 2 * pi * 8 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));x2Points[9] = centerX - (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.cos((float) 36 / 360 * 2 * pi * 9 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));y2Points[9] = centerY + (float) 10 / Math.cos((float) 36 / 360 * 2 * pi) *Math.sin((float) 36 / 360 * 2 * pi * 9 + Math.atan((float) Math.abs(y2Points[0] - centerY)/ (float) Math.abs(x2Points[0] - centerX)));}

绘制五角星代码

/*** 五角星中心点位置*/double centerX = 300D;double centerY = 60D;/*** 五角星10个点坐标* 第一个点坐标必须指定*/double x2Points[] = {274D, 0D, 0D, 0D, 0D, 0D, 0D, 0D, 0D, 0D};double y2Points[] = {75D, 0D, 0D, 0D, 0D, 0D, 0D, 0D, 0D, 0D};calculateFivePointedStarPoint(centerX, centerY, x2Points, y2Points);BufferedImage image = loadImage();Graphics2D graphics2D = image.createGraphics();graphics2D.setColor(Color.RED);GeneralPath polyline =new GeneralPath(GeneralPath.WIND_NON_ZERO, x2Points.length);//画笔移动至 (0,0)坐标polyline.moveTo(x2Points[0], y2Points[0]);//然后从 (0,0)坐标开始 按顺序 绘制到目标点的线for (int index = 1; index < x2Points.length; index++) {polyline.lineTo(x2Points[index], y2Points[index]);}polyline.closePath();graphics2D.draw(polyline);graphics2D.dispose();image.flush();ImgUtil.write(image, new File(SAVE_FILE_PATH + "five-pointed-star.png"));

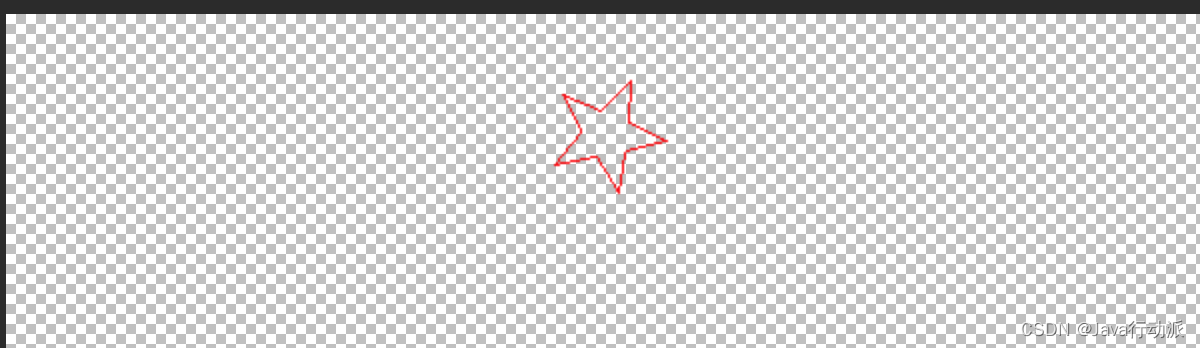

绘制效果：

大家看到五角星10个坐标点的计算方法是不是懵逼了，没错就是这么复杂，觉得有用的朋友一定要点赞加关注，感谢！！！！！！
