一、消息消费

1. 消费UML图

        PUSH模式消息拉取机制参考《RocketMQ5.0.0消息消费＜一＞ _ PUSH模式的消息拉取​》，PullMessageService负责对消息队列进行消息拉取，从Broker端拉取消息后将消息存入ProcessQueue消息处理队列中，后调用ConsumeMessageService#submitConsumeRequest方法将消息提交到线程池。使用消费线程池确保了消息拉取与消息消费的解耦。RocketMQ使用ConsumeMessageService来实现消息消费的处理逻辑。

        RocketMQ支持顺序消费与并发消费，本章节介绍并发消费消息的流程。

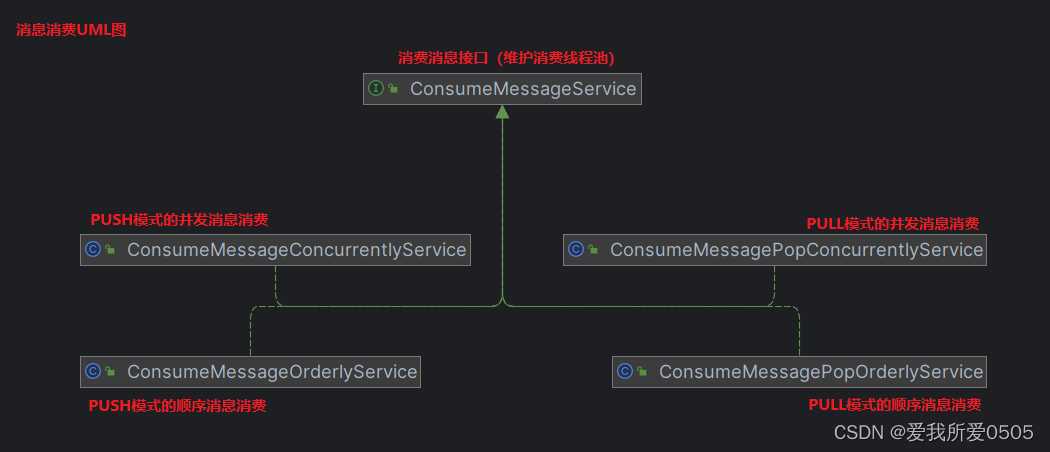

        下图所示是消费消息UML图，org.apache.rocketmq.client.impl.consumer.ConsumeMessageService维护一个消费线程池。

        org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService是PUSH模式的并发消息消费实现类，其关键属性如下。

// 消息推模式实现类
private final DefaultMQPushConsumerImpl defaultMQPushConsumerImpl;
// 默认推模式消费者
private final DefaultMQPushConsumer defaultMQPushConsumer;
// 并发消息监听
private final MessageListenerConcurrently messageListener;
// 消费线程池的任务队列
private final BlockingQueue consumeRequestQueue;
// 消费线程池
private final ThreadPoolExecutor consumeExecutor;
// 消费组
private final String consumerGroup;// 消费延迟调度器
private final ScheduledExecutorService scheduledExecutorService;
// 定时删除过期消息线程池
private final ScheduledExecutorService cleanExpireMsgExecutors;

2. 提交消息

        参考《RocketMQ5.0.0消息消费＜一＞ _ PUSH模式的消息拉取​》，成功拉取消息后，org.apache.rocketmq.client.consumer.PullCallback回调onSuccess()，把消息提交（异步提交）到ConsumeMessageService的线程池中，供消费者消费，则本次拉取消息完成。

        org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService#submitConsumeRequest是提交拉取的消息到消费线程池中的核心方法，如下代码所示。注意事项：

• consumeMessageBatchMaxSize：获取并发消费时一次消费消息条数，默认1条。
• 判断拉取的消息条数（默认最大32条）与 consumeBatchSize大小比较：

        a. msgs.size() <= consumeBatchSize时：组装消费请求ConsumeRequest并提交消费任务到消费线程池中；

        b. msgs.size() > consumeBatchSize时：分页提交到消费线程池中。

• submitConsumeRequestLater()：消费线程池饱和拒绝时，则延迟5s再次提交消费请求。

/*** 提交消息消费，供消费者消费* 并发消息消费入口：{@link DefaultMQPushConsumerImpl#pullMessage}中的{@link org.apache.rocketmq.client.consumer.PullCallback}* step1：获取并发消费时一次消费消息条数，默认1条（DefaultMQPushConsumer.consumeMessageBatchMaxSize）* step2：msgs.size()一次拉取消息的条数，最大32条 <= consumeBatchSize时，*          a. 组装消费请求并提交消费任务到消费线程池中*          b. 出现饱和抛出异常时，延迟5s提交{@link ConsumeMessageConcurrentlyService#submitConsumeRequestLater(ConsumeRequest)}* step3：msgs.size()一次拉取消息的条数，最大32条 > consumeBatchSize时，分页提交到消费线程池中* @param msgs 一次拉取待消费消息，最大默认32条{@link DefaultMQPushConsumer#pullBatchSize}* @param processQueue 待消息消费处理队列* @param messageQueue 消息所属消费队列* @param dispatchToConsume 是否转发到消费线程池，并发消费则忽略*/
@Override
public void submitConsumeRequest(final List msgs,final ProcessQueue processQueue,final MessageQueue messageQueue,final boolean dispatchToConsume) {// 并发消费时一次消费消息条数，默认1条（DefaultMQPushConsumer.consumeMessageBatchMaxSize）final int consumeBatchSize = this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize();// msgs.size()一次拉取消息的条数，最大32条if (msgs.size() <= consumeBatchSize) {// 组装消费请求ConsumeRequest consumeRequest = new ConsumeRequest(msgs, processQueue, messageQueue);try {// 消费任务直接提交到消费线程池，具体消费逻辑ConsumeMessageConcurrentlyService.ConsumeRequest.runthis.consumeExecutor.submit(consumeRequest);} catch (RejectedExecutionException e) {// 延迟5s提交到消费线程池this.submitConsumeRequestLater(consumeRequest);}}// msgs.size() > consumeBatchSize时，对拉取消息进行分页，每页有consumeBatchSize条消息else {for (int total = 0; total < msgs.size(); ) {// 每页有consumeBatchSize条消息List msgThis = new ArrayList(consumeBatchSize);for (int i = 0; i < consumeBatchSize; i++, total++) {if (total < msgs.size()) {msgThis.add(msgs.get(total));} else {break;}}ConsumeRequest consumeRequest = new ConsumeRequest(msgThis, processQueue, messageQueue);try {this.consumeExecutor.submit(consumeRequest);} catch (RejectedExecutionException e) {for (; total < msgs.size(); total++) {msgThis.add(msgs.get(total));}this.submitConsumeRequestLater(consumeRequest);}}}
}

3. 消费消息

        org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService.ConsumeRequest是提交线程池中的消费任务，该类是个线程。其关键属性如下。

// 提交消费请求的消息
private final List msgs;
// PullRequest.messageQueue属性：待拉取消费队列（负载均衡后的分配的消息队列）
private final ProcessQueue processQueue;
// PullRequest.processQueue属性：消息处理队列（存储已拉取的消息）
private final MessageQueue messageQueue;

        ConsumeMessageConcurrentlyService.ConsumeRequest#run方法执行消息消费逻辑，代码如下。注意事项：

• processQueue.isDropped()：判断拉取消息处理队列是否被丢弃（消费队列重新负载 _ 删除处理），避免消息重复消费；ACK时，也要进行是否丢弃判断。
• MessageListenerConcurrently#consumeMessage：具体的消息消费业务逻辑，返回该批消息的消费结果。
• ConsumeMessageConcurrentlyService#processConsumeResult()：消费者消费消息后，进行消息ACK确认，下小节介绍。
• ConsumeConcurrentlyStatus status：该批消息的消费结果（成功CONSUME_SUCCESS、失败RECONSUME_LATER）

/*** 并发消息消费的具体逻辑* 入口：{@link ConsumeMessageConcurrentlyService#submitConsumeRequest}* step1：判断当前消费者的ProcessQueue是否被丢弃，true时重新负载均衡后所属消费队列被消费组内其他消费则占用* step2：恢复重试消息主题名（消息重试机制决定）* step3：执行消费前的钩子函数* step4：具体的消息消费业务逻辑，返回该批消息的消费结果*        {@link MessageListenerConcurrently#consumeMessage(List, ConsumeConcurrentlyContext)}* step5：判断是否消费超时* step6：执行消费后钩子函数* step7：再次判断当前消费者的ProcessQueue是否被丢弃（消费过程中是否被修改），防止重复消费*        没有丢弃，则处理消费结果，ACK机制{@link ConsumeMessageConcurrentlyService#processConsumeResult(ConsumeConcurrentlyStatus, ConsumeConcurrentlyContext, ConsumeRequest)}*/
@Override
public void run() {// 判断当前消费者的ProcessQueue是否被丢弃，true时重新负载均衡后所属消费队列被消费组内其他消费则占用if (this.processQueue.isDropped()) {log.info("the message queue not be able to consume, because it's dropped. group={} {}", ConsumeMessageConcurrentlyService.this.consumerGroup, this.messageQueue);return;}// 并发消息消费监听器MessageListenerConcurrently listener = ConsumeMessageConcurrentlyService.this.messageListener;ConsumeConcurrentlyContext context = new ConsumeConcurrentlyContext(messageQueue);ConsumeConcurrentlyStatus status = null;// 恢复重试消息主题名（消息重试机制决定）defaultMQPushConsumerImpl.tryResetPopRetryTopic(msgs, consumerGroup);defaultMQPushConsumerImpl.resetRetryAndNamespace(msgs, defaultMQPushConsumer.getConsumerGroup());// 执行消费前的钩子函数ConsumeMessageContext consumeMessageContext = null;if (ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.hasHook()) {consumeMessageContext = new ConsumeMessageContext();consumeMessageContext.setNamespace(defaultMQPushConsumer.getNamespace());consumeMessageContext.setConsumerGroup(defaultMQPushConsumer.getConsumerGroup());consumeMessageContext.setProps(new HashMap());consumeMessageContext.setMq(messageQueue);consumeMessageContext.setMsgList(msgs);consumeMessageContext.setSuccess(false);// 执行消费前钩子函数ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.executeHookBefore(consumeMessageContext);}long beginTimestamp = System.currentTimeMillis();boolean hasException = false;ConsumeReturnType returnType = ConsumeReturnType.SUCCESS;try {if (msgs != null && !msgs.isEmpty()) {for (MessageExt msg : msgs) {// 设置消费开始时间MessageAccessor.setConsumeStartTimeStamp(msg, String.valueOf(System.currentTimeMillis()));}}// 具体的消息消费业务逻辑，返回该批消息的消费结果status = listener.consumeMessage(Collections.unmodifiableList(msgs), context);} catch (Throwable e) {log.warn(String.format("consumeMessage exception: %s Group: %s Msgs: %s MQ: %s",RemotingHelper.exceptionSimpleDesc(e),ConsumeMessageConcurrentlyService.this.consumerGroup,msgs,messageQueue), e);hasException = true;}long consumeRT = System.currentTimeMillis() - beginTimestamp;if (null == status) {if (hasException) {returnType = ConsumeReturnType.EXCEPTION;} else {returnType = ConsumeReturnType.RETURNNULL;}}// 消费是否超时else if (consumeRT >= defaultMQPushConsumer.getConsumeTimeout() * 60 * 1000) {returnType = ConsumeReturnType.TIME_OUT;} else if (ConsumeConcurrentlyStatus.RECONSUME_LATER == status) {returnType = ConsumeReturnType.FAILED;} else if (ConsumeConcurrentlyStatus.CONSUME_SUCCESS == status) {returnType = ConsumeReturnType.SUCCESS;}if (ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.hasHook()) {consumeMessageContext.getProps().put(MixAll.CONSUME_CONTEXT_TYPE, returnType.name());}if (null == status) {log.warn("consumeMessage return null, Group: {} Msgs: {} MQ: {}",ConsumeMessageConcurrentlyService.this.consumerGroup,msgs,messageQueue);status = ConsumeConcurrentlyStatus.RECONSUME_LATER;}// 执行消费后钩子函数if (ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.hasHook()) {consumeMessageContext.setStatus(status.toString());consumeMessageContext.setSuccess(ConsumeConcurrentlyStatus.CONSUME_SUCCESS == status);ConsumeMessageConcurrentlyService.this.defaultMQPushConsumerImpl.executeHookAfter(consumeMessageContext);}ConsumeMessageConcurrentlyService.this.getConsumerStatsManager().incConsumeRT(ConsumeMessageConcurrentlyService.this.consumerGroup, messageQueue.getTopic(), consumeRT);// 再次判断当前消费者的ProcessQueue是否被丢弃（消费过程中是否被修改），防止重复消费if (!processQueue.isDropped()) {// 处理消费结果，ACK机制ConsumeMessageConcurrentlyService.this.processConsumeResult(status, context, this);} else {log.warn("processQueue is dropped without process consume result. messageQueue={}, msgs={}", messageQueue, msgs);}
}

二、消息确认（ACK）

        根据上节的介绍，PUSH模式拉取消息后，拉取请求提交到消费线程池，消费者消费消息。org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus是消费者消费该批消息的结果，只有在消费结果是失败（RECONSUME_LATER）时，这批消息逐条发送消费ACK确认。

        Broker处理消费ACK请求时，消息主题修改为重试主题（%RETRY% + 消费组名称），而原始主题存储到消息扩展属性。同时，判断消费次数是否超出最大重试消费（默认16次），若是则进入DLQ队列。新消息再次存储到Commitlog文件，而不是直接修改消息，原因是RocketMQ顺序写入Commitlog文件，随机读，提高消息的吞吐量。消费者重新消费时，恢复为原始主题。

1. 消费端处理消费结果

        org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService#processConsumeResult是处理消费结果的核心逻辑方法，如下代码。注意事项：

• 根据消费结果计算ackIndex：

                该批消息消费成功CONSUME_SUCCESS：ackIndex为msgs.size() - 1

                该批消息消费失败RECONSUME_LATER：ackIndex为-1

• 根据消费模式处理失败RECONSUME_LATER：

                广播：只打印日志。

                集群：该批消息逐条向Broker同步发送ACK确认，Broker返回失败时设置消费次数（+1）并再次封装成ConsumeRequest，且延迟5s重新消费。

• 消费结果成功时：更新消费进度（移除该批消息后，获取剩下的msgTreeMap消息中最小的偏移量，避免重复消费），下小节介绍消费进度管理。

/*** 处理消费结果* step1：计算ackIndex，为消费ACK准备：*            成功CONSUME_SUCCESS：ackIndex为msgs.size() - 1*            失败RECONSUME_LATER：ackIndex为-1* step2：消费模式，处理业务方返回RECONSUME_LATER的消息：*            广播BROADCASTING：RECONSUME_LATER的消息执行，只打印日志*            集群CLUSTERING：本批消息只要有一个返回RECONSUME_LATER，则本批消息都需要ACK，ACK返回失败，设置消费次数* step3：更新消费进度：*            移除该批消息后，获取剩下的msgTreeMap消息中最小的偏移量，避免重复消费*/
public void processConsumeResult(final ConsumeConcurrentlyStatus status,final ConsumeConcurrentlyContext context,final ConsumeRequest consumeRequest
) {int ackIndex = context.getAckIndex();if (consumeRequest.getMsgs().isEmpty())return;// 计算ackIndex，为消费ACK准备switch (status) {// 成功，则ackIndex为msgs.size() - 1case CONSUME_SUCCESS:if (ackIndex >= consumeRequest.getMsgs().size()) {ackIndex = consumeRequest.getMsgs().size() - 1;}int ok = ackIndex + 1;int failed = consumeRequest.getMsgs().size() - ok;this.getConsumerStatsManager().incConsumeOKTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), ok);this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(), failed);break;// 失败，则ackIndex为-1case RECONSUME_LATER:ackIndex = -1;this.getConsumerStatsManager().incConsumeFailedTPS(consumerGroup, consumeRequest.getMessageQueue().getTopic(),consumeRequest.getMsgs().size());break;default:break;}// 根据消费模式，处理业务方返回RECONSUME_LATER的消息switch (this.defaultMQPushConsumer.getMessageModel()) {case BROADCASTING:// RECONSUME_LATER的消息执行，只打印日志for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {MessageExt msg = consumeRequest.getMsgs().get(i);log.warn("BROADCASTING, the message consume failed, drop it, {}", msg.toString());}break;case CLUSTERING:// 本批消息只要有一个返回RECONSUME_LATER，则本批消息都需要ACKList msgBackFailed = new ArrayList(consumeRequest.getMsgs().size());for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {MessageExt msg = consumeRequest.getMsgs().get(i);// 每条消息，向Broker发送ACKboolean result = this.sendMessageBack(msg, context);// ACK返回失败的消息，设置消费次数if (!result) {msg.setReconsumeTimes(msg.getReconsumeTimes() + 1);msgBackFailed.add(msg);}}// ACK返回失败的消息再次封装成ConsumeRequest，且延迟5s重新消费if (!msgBackFailed.isEmpty()) {consumeRequest.getMsgs().removeAll(msgBackFailed);this.submitConsumeRequestLater(msgBackFailed, consumeRequest.getProcessQueue(), consumeRequest.getMessageQueue());}break;default:break;}// 移除消息后，获取剩下的msgTreeMap消息，最小的偏移量，避免重复消费long offset = consumeRequest.getProcessQueue().removeMessage(consumeRequest.getMsgs());// 更新本地消费队列的消费进度if (offset >= 0 && !consumeRequest.getProcessQueue().isDropped()) {this.defaultMQPushConsumerImpl.getOffsetStore().updateOffset(consumeRequest.getMessageQueue(), offset, true);}
}

        org.apache.rocketmq.client.impl.MQClientAPIImpl#consumerSendMessageBack是同步发送消息ACK确认核心方法，如下代码。请求码RequestCode.CONSUMER_SEND_MSG_BACK，注意事项：

• delayLevel（延迟级别）：取ConsumeConcurrentlyContext#delayLevelWhenNextConsume属性（消费延迟重试策略），值有：

                -1：不重试，直接进入死信队列DLQ
                0（默认）：Broker控制重试次数
                >0：消费端控制重试次数

/*** 同步向Broker发送消息消费ACK请求* step1：构建消费确认ACK的发送请求头{@link ConsumerSendMsgBackRequestHeader}；* step2：同步发送ACK* 注意：delayLevel（延迟级别）：取{@link ConsumeConcurrentlyContext#delayLevelWhenNextConsume}属性（消费延迟重试策略），值有：*                      -1：不重试，直接进入死信队列DLQ；0（默认）：Broker控制重试次数；>0：消费端控制重试次数* Broker入口：{@link org.apache.rocketmq.broker.processor.SendMessageProcessor#processRequest}* @param addr Broker地址* @param msg* @param consumerGroup* @param delayLevel 延迟级别* @param timeoutMillis 超时时间* @param maxConsumeRetryTimes 最大消费重试次数*/
public void consumerSendMessageBack(final String addr,final MessageExt msg,final String consumerGroup,final int delayLevel,final long timeoutMillis,final int maxConsumeRetryTimes
) throws RemotingException, MQBrokerException, InterruptedException {// 构建消费确认ACK的发送请求头ConsumerSendMsgBackRequestHeader requestHeader = new ConsumerSendMsgBackRequestHeader();// 发送请求码CONSUMER_SEND_MSG_BACKRemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.CONSUMER_SEND_MSG_BACK, requestHeader);requestHeader.setGroup(consumerGroup);requestHeader.setOriginTopic(msg.getTopic());requestHeader.setOffset(msg.getCommitLogOffset());requestHeader.setDelayLevel(delayLevel);requestHeader.setOriginMsgId(msg.getMsgId());requestHeader.setMaxReconsumeTimes(maxConsumeRetryTimes);RemotingCommand response = this.remotingClient.invokeSync(MixAll.brokerVIPChannel(this.clientConfig.isVipChannelEnabled(), addr),request, timeoutMillis);assert response != null;switch (response.getCode()) {case ResponseCode.SUCCESS: {return;}default:break;}throw new MQBrokerException(response.getCode(), response.getRemark(), addr);
}

2. Broker端处理消费ACK请求

        SendMessageProcessor#processRequest是Broker端接收消费ACK请求方法，请求码RequestCode.CONSUMER_SEND_MSG_BACK。

        org.apache.rocketmq.broker.processor.AbstractSendMessageProcessor#consumerSendMsgBack是消费ACK的核心方法，代码如下。注意事项：

• 主题修改为重试主题：重试主题（%RETRY% + 消费组名称），并且从重试队列中随机选择一个队列；消息原始主题存储到消息扩展属性。
• 判断延迟级别delayLevel：见上小节《消费端处理消费结果》，默认0是Broker控制重试次数。
• 判定消费重试次数是否超出最大重试次数：

        a. 消费次数 >= 最大重试消费次数 或 delayLevel < 0时：进入DLQ队列（只有写权限），不在进行消费，需要人工干预；

        b. 消费次数 < 最大重试消费次数时：若是delayLevel = 0 （默认）则重置delayLevel，后消息进行延迟消费（设置延迟级别）。

• 创建新消息对象：创建新消息并提交到Commitlog文件内存，而不是修改消息（重试次数）。原因是：RocketMQ顺序写入Commitlog文件，随机读，提高消息的吞吐量。

/*** Broker处理消息消费ACK确认* 消费者ACK入口：{@link MQClientAPIImpl#consumerSendMessageBack}* step1：获取重试主题（%RETRY% + 消费组名称），并且从重试队列中随机选择一个队列* step2：构建重试主题配置信息*        {@link TopicConfigManager#createTopicInSendMessageBackMethod}* step3：判断是否有写权限* step4：根据offset从Commitlog获取消息* step5：消息的原始主题存入到属性中* step6：获取最大重试消费次数，默认16次*        {@link SubscriptionGroupConfig.retryMaxTimes}* step7：消费次数 >= 最大重试消费次数 或 delayLevel < 0时，进入DLQ队列（只有写权限），不在进行消费，需要人工干预*       消费次数 < 最大重试消费次数，若是delayLevel = 0 （默认）则重置delayLevel，后消息进行延迟消费（设置延迟级别）* step8：创建新的消息对象，并重新提交到Commitlog文件内存*        topic为重试主题、新的msgId，其他属性与原消息一致；新的消息对象存储到Commitlog文件中；原来消息的topic、msgId存入新消息属性。*/
protected RemotingCommand consumerSendMsgBack(final ChannelHandlerContext ctx, final RemotingCommand request)throws RemotingCommandException {final RemotingCommand response = RemotingCommand.createResponseCommand(null);final ConsumerSendMsgBackRequestHeader requestHeader =(ConsumerSendMsgBackRequestHeader) request.decodeCommandCustomHeader(ConsumerSendMsgBackRequestHeader.class);// The send back requests sent to SlaveBroker will be forwarded to the master broker besidefinal BrokerController masterBroker = this.brokerController.peekMasterBroker();if (null == masterBroker) {response.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark("no master available along with " + brokerController.getBrokerConfig().getBrokerIP1());return response;}// The broker that received the request.// It may be a master broker or a slave brokerfinal BrokerController currentBroker = this.brokerController;SubscriptionGroupConfig subscriptionGroupConfig =masterBroker.getSubscriptionGroupManager().findSubscriptionGroupConfig(requestHeader.getGroup());if (null == subscriptionGroupConfig) {response.setCode(ResponseCode.SUBSCRIPTION_GROUP_NOT_EXIST);response.setRemark("subscription group not exist, " + requestHeader.getGroup() + " "+ FAQUrl.suggestTodo(FAQUrl.SUBSCRIPTION_GROUP_NOT_EXIST));return response;}BrokerConfig masterBrokerConfig = masterBroker.getBrokerConfig();if (!PermName.isWriteable(masterBrokerConfig.getBrokerPermission())) {response.setCode(ResponseCode.NO_PERMISSION);response.setRemark("the broker[" + masterBrokerConfig.getBrokerIP1() + "] sending message is forbidden");return response;}if (subscriptionGroupConfig.getRetryQueueNums() <= 0) {response.setCode(ResponseCode.SUCCESS);response.setRemark(null);return response;}// 获取重试主题：%RETRY% + 消费组名称String newTopic = MixAll.getRetryTopic(requestHeader.getGroup());// 从重试队列中随机选择一个队列int queueIdInt = this.random.nextInt(subscriptionGroupConfig.getRetryQueueNums());int topicSysFlag = 0;if (requestHeader.isUnitMode()) {topicSysFlag = TopicSysFlag.buildSysFlag(false, true);}// Create retry topic to master broker 构建重试主题配置信息TopicConfig topicConfig = masterBroker.getTopicConfigManager().createTopicInSendMessageBackMethod(newTopic,subscriptionGroupConfig.getRetryQueueNums(),PermName.PERM_WRITE | PermName.PERM_READ, topicSysFlag);if (null == topicConfig) {response.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark("topic[" + newTopic + "] not exist");return response;}// 是否有写权限if (!PermName.isWriteable(topicConfig.getPerm())) {response.setCode(ResponseCode.NO_PERMISSION);response.setRemark(String.format("the topic[%s] sending message is forbidden", newTopic));return response;}// 根据offset从Commitlog获取消息// Look message from the origin message storeMessageExt msgExt = currentBroker.getMessageStore().lookMessageByOffset(requestHeader.getOffset());if (null == msgExt) {response.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark("look message by offset failed, " + requestHeader.getOffset());return response;}//for logic queueif (requestHeader.getOriginTopic() != null&& !msgExt.getTopic().equals(requestHeader.getOriginTopic())) {//here just do some fence in case of some unexpected offset is incomeresponse.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark("look message by offset failed to check the topic name" + requestHeader.getOffset());return response;}// 消息的原始主题存入到属性中final String retryTopic = msgExt.getProperty(MessageConst.PROPERTY_RETRY_TOPIC);if (null == retryTopic) {MessageAccessor.putProperty(msgExt, MessageConst.PROPERTY_RETRY_TOPIC, msgExt.getTopic());}msgExt.setWaitStoreMsgOK(false);// 延迟级别int delayLevel = requestHeader.getDelayLevel();// 获取最大重试消费次数，默认16次int maxReconsumeTimes = subscriptionGroupConfig.getRetryMaxTimes();if (request.getVersion() >= MQVersion.Version.V3_4_9.ordinal()) {Integer times = requestHeader.getMaxReconsumeTimes();if (times != null) {maxReconsumeTimes = times;}}// 消费次数 >= 最大重试消费次数时，进入DLQ队列（只有写权限），不在进行消费，需要人工干预boolean isDLQ = false;if (msgExt.getReconsumeTimes() >= maxReconsumeTimes|| delayLevel < 0) {// 进入DQL队列，重置newTopic为：%DLQ% + 消费组isDLQ = true;newTopic = MixAll.getDLQTopic(requestHeader.getGroup());queueIdInt = randomQueueId(DLQ_NUMS_PER_GROUP);// Create DLQ topic to master brokertopicConfig = masterBroker.getTopicConfigManager().createTopicInSendMessageBackMethod(newTopic,DLQ_NUMS_PER_GROUP,PermName.PERM_WRITE | PermName.PERM_READ, 0);if (null == topicConfig) {response.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark("topic[" + newTopic + "] not exist");return response;}msgExt.setDelayTimeLevel(0);}// 消费次数 < 最大重试消费次数，则消息进行延迟消费else {// 根据消费次数，设置延迟级别if (0 == delayLevel) {delayLevel = 3 + msgExt.getReconsumeTimes();}msgExt.setDelayTimeLevel(delayLevel);}/*创建新的消息对象a. topic为重试主题、新的msgId，其他属性与原消息一致；b. 新的消息对象存储到Commitlog文件中；c. 原来消息的topic、msgId存入新消息属性。*/MessageExtBrokerInner msgInner = new MessageExtBrokerInner();msgInner.setTopic(newTopic);msgInner.setBody(msgExt.getBody());msgInner.setFlag(msgExt.getFlag());MessageAccessor.setProperties(msgInner, msgExt.getProperties());msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgExt.getProperties()));msgInner.setTagsCode(MessageExtBrokerInner.tagsString2tagsCode(null, msgExt.getTags()));msgInner.setQueueId(queueIdInt);msgInner.setSysFlag(msgExt.getSysFlag());msgInner.setBornTimestamp(msgExt.getBornTimestamp());msgInner.setBornHost(msgExt.getBornHost());msgInner.setStoreHost(this.getStoreHost());msgInner.setReconsumeTimes(msgExt.getReconsumeTimes() + 1); // 消费次数+1String originMsgId = MessageAccessor.getOriginMessageId(msgExt);MessageAccessor.setOriginMessageId(msgInner, UtilAll.isBlank(originMsgId) ? msgExt.getMsgId() : originMsgId);msgInner.setPropertiesString(MessageDecoder.messageProperties2String(msgExt.getProperties()));boolean succeeded = false;// 存储到Commitlog中// Put retry topic to master message storePutMessageResult putMessageResult = masterBroker.getMessageStore().putMessage(msgInner);if (putMessageResult != null) {String commercialOwner = request.getExtFields().get(BrokerStatsManager.COMMERCIAL_OWNER);switch (putMessageResult.getPutMessageStatus()) {case PUT_OK:String backTopic = msgExt.getTopic();String correctTopic = msgExt.getProperty(MessageConst.PROPERTY_RETRY_TOPIC);if (correctTopic != null) {backTopic = correctTopic;}if (TopicValidator.RMQ_SYS_SCHEDULE_TOPIC.equals(msgInner.getTopic())) {masterBroker.getBrokerStatsManager().incTopicPutNums(msgInner.getTopic());masterBroker.getBrokerStatsManager().incTopicPutSize(msgInner.getTopic(), putMessageResult.getAppendMessageResult().getWroteBytes());masterBroker.getBrokerStatsManager().incQueuePutNums(msgInner.getTopic(), msgInner.getQueueId());masterBroker.getBrokerStatsManager().incQueuePutSize(msgInner.getTopic(), msgInner.getQueueId(), putMessageResult.getAppendMessageResult().getWroteBytes());}masterBroker.getBrokerStatsManager().incSendBackNums(requestHeader.getGroup(), backTopic);if (isDLQ) {masterBroker.getBrokerStatsManager().incDLQStatValue(BrokerStatsManager.SNDBCK2DLQ_TIMES,commercialOwner,requestHeader.getGroup(),requestHeader.getOriginTopic(),BrokerStatsManager.StatsType.SEND_BACK_TO_DLQ.name(),1);String uniqKey = msgInner.getProperties().get(MessageConst.PROPERTY_UNIQ_CLIENT_MESSAGE_ID_KEYIDX);DLQ_LOG.info("send msg to DLQ {}, owner={}, originalTopic={}, consumerId={}, msgUniqKey={}, storeTimestamp={}",newTopic,commercialOwner,requestHeader.getOriginTopic(),requestHeader.getGroup(),uniqKey,putMessageResult.getAppendMessageResult().getStoreTimestamp());}response.setCode(ResponseCode.SUCCESS);response.setRemark(null);succeeded = true;break;default:break;}if (!succeeded) {response.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark(putMessageResult.getPutMessageStatus().name());}} else {if (isDLQ) {String owner = request.getExtFields().get(BrokerStatsManager.COMMERCIAL_OWNER);String uniqKey = msgInner.getProperties().get(MessageConst.PROPERTY_UNIQ_CLIENT_MESSAGE_ID_KEYIDX);DLQ_LOG.info("failed to send msg to DLQ {}, owner={}, originalTopic={}, consumerId={}, msgUniqKey={}, result={}",newTopic,owner,requestHeader.getOriginTopic(),requestHeader.getGroup(),uniqKey,"null");}response.setCode(ResponseCode.SYSTEM_ERROR);response.setRemark("putMessageResult is null");}if (this.hasConsumeMessageHook() && !UtilAll.isBlank(requestHeader.getOriginMsgId())) {String namespace = NamespaceUtil.getNamespaceFromResource(requestHeader.getGroup());ConsumeMessageContext context = new ConsumeMessageContext();context.setNamespace(namespace);context.setTopic(requestHeader.getOriginTopic());context.setConsumerGroup(requestHeader.getGroup());context.setCommercialRcvStats(BrokerStatsManager.StatsType.SEND_BACK);context.setCommercialRcvTimes(1);context.setCommercialOwner(request.getExtFields().get(BrokerStatsManager.COMMERCIAL_OWNER));context.setAccountAuthType(request.getExtFields().get(BrokerStatsManager.ACCOUNT_AUTH_TYPE));context.setAccountOwnerParent(request.getExtFields().get(BrokerStatsManager.ACCOUNT_OWNER_PARENT));context.setAccountOwnerSelf(request.getExtFields().get(BrokerStatsManager.ACCOUNT_OWNER_SELF));context.setRcvStat(isDLQ ? BrokerStatsManager.StatsType.SEND_BACK_TO_DLQ : BrokerStatsManager.StatsType.SEND_BACK);context.setSuccess(succeeded);context.setRcvMsgNum(1);//Set msg body size 0 when sent back by consumer.context.setRcvMsgSize(0);context.setCommercialRcvMsgNum(succeeded ? 1 : 0);try {this.executeConsumeMessageHookAfter(context);} catch (AbortProcessException e) {response.setCode(e.getResponseCode());response.setRemark(e.getErrorMessage());}}return response;
}

        重试新消息的延迟时间达到后，则允许再次拉取消息，进而重新消费。拉取消息提交到消费线程消费时，重试主题恢复到原始主题重新消费。ConsumeRequest#run()消费消息任务，详细见上节，如下代码所示。

@Override
public void run() {......// 恢复重试消息主题名（消息重试机制决定）defaultMQPushConsumerImpl.tryResetPopRetryTopic(msgs, consumerGroup);defaultMQPushConsumerImpl.resetRetryAndNamespace(msgs, defaultMQPushConsumer.getConsumerGroup());......
}

三、消费进度管理

        上面章节介绍，消费一批消息成功后，则ProceeQueue移除该批消息，获取剩下的msgTreeMap消息中最小的偏移量，避免重复消费，同时更新消费偏移量。那么消费进度存储在哪里呢？

• 广播模式：同一个消费组的所有消费者都需要消费主题下的所有消息，也就是同组内的消费者的消息消费行为是对立的，互相不影响，所以消费进度存储在本地消费者。
• 集群模式：同一个消费组的所有消费者共享主题下的所有消息，同一个消息消费队列在同一时间只会被消费组内的一个消费者消费，并且随着消费队列的动态变化重新负载，所以消费进度存储在Broker。

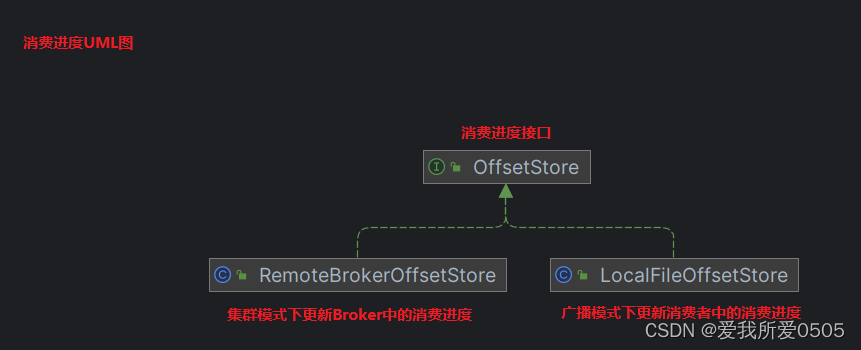

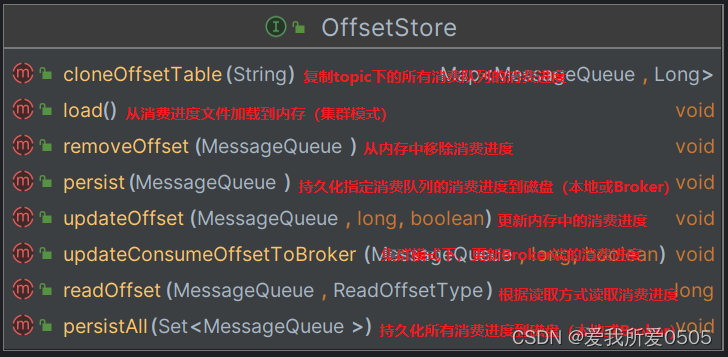

        org.apache.rocketmq.client.consumer.store.OffsetStore是消费进度接口，其UML图及接口方法如下。

        消费者启动时，会初始化消费进度。如：根据集群模式创建OffsetStore接口的具体实现类；执行load()加载消费进度到内存中（offsetTable维护）；执行5s定时周期任务，持久化消费进度。

1. 广播模式消费进度存储

        org.apache.rocketmq.client.consumer.store.LocalFileOffsetStore是广播模式消费进度存储的实现类，其关键属性如下。

// 本地存储目录，默认用户主目录/.rocketmq_offsets，通过-Drocketmq.client.localOffsetStoreDir配置
public final static String LOCAL_OFFSET_STORE_DIR = System.getProperty("rocketmq.client.localOffsetStoreDir",System.getProperty("user.home") + File.separator + ".rocketmq_offsets");
// 存储文件，路径：LOCAL_OFFSET_STORE_DIR/.rocketmq_offsets/{mQClientFactory.getClientId()}/groupName/offsets.json
private final String storePath;
// 内存中消费队列的消费进度
private ConcurrentMap offsetTable = new ConcurrentHashMap();

        消费者启动时，会初始化消费进度。若是广播模式，则从文件中加载消费进度，LocalFileOffsetStore#load加载消费进度，如下代码所示。

/*** 广播模式下加载消费进度文件（消费者启动时，会初始化消费进度）* 消费者启动入口：{@link DefaultMQPushConsumerImpl#start()}* step1：读取本地磁盘消费队列的消费进度到内存*        {@link LocalFileOffsetStore#readLocalOffset()}* step2：遍历，消费进度存储到内存中消费队列的消费进度{@link LocalFileOffsetStore#offsetTable}*/
@Override
public void load() throws MQClientException {// 读取本地磁盘消费队列的消费进度到内存OffsetSerializeWrapper offsetSerializeWrapper = this.readLocalOffset();if (offsetSerializeWrapper != null && offsetSerializeWrapper.getOffsetTable() != null) {offsetTable.putAll(offsetSerializeWrapper.getOffsetTable());// 打印日志for (Entry mqEntry : offsetSerializeWrapper.getOffsetTable().entrySet()) {AtomicLong offset = mqEntry.getValue();log.info("load consumer's offset, {} {} {}",this.groupName,mqEntry.getKey(),offset.get());}}
}

        消费者定时5s周期执行持久化消费进度到磁盘，LocalFileOffsetStore#persistAll，代码如下。

/*** 持久化所有消费进度到磁盘* 什么时候持久化呢？  MQ的客户端实例启动定时任务，每5s持久化一次* 定时任务{@link MQClientInstance#startScheduledTask()}5s执行persistAllConsumerOffset()方法*/
@Override
public void persistAll(Set mqs) {if (null == mqs || mqs.isEmpty())return;// 构建对象，把指定的MessageQueue添加到offsetTable中，进行持久化OffsetSerializeWrapper offsetSerializeWrapper = new OffsetSerializeWrapper();for (Map.Entry entry : this.offsetTable.entrySet()) {if (mqs.contains(entry.getKey())) {AtomicLong offset = entry.getValue();offsetSerializeWrapper.getOffsetTable().put(entry.getKey(), offset);}}// 转为json字符串String jsonString = offsetSerializeWrapper.toJson(true);if (jsonString != null) {try {MixAll.string2File(jsonString, this.storePath);} catch (IOException e) {log.error("persistAll consumer offset Exception, " + this.storePath, e);}}
}

2. 集群模式消费进度存储

        org.apache.rocketmq.client.consumer.store.RemoteBrokerOffsetStore是集群模式消费进度存储的实现类，其关键属性如下。

// 内存中消费队列的消费进度
private ConcurrentMap offsetTable = new ConcurrentHashMap();

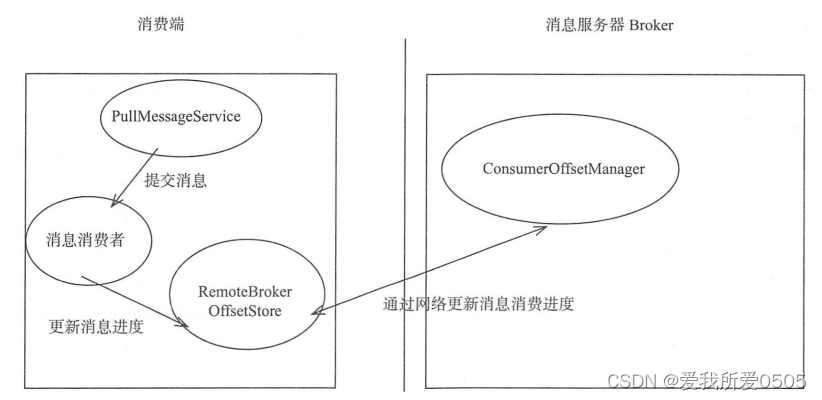

        消费者启动时，会初始化消费进度。执行load()方法为空，即：集群模式下无需加载操作。成功消费该批消息后，执行OffsetStore#updateOffset方法更新本地消费队列的消费进度（内存消费进度）。而消费者定时5s周期执行持久化消费进度到磁盘，LocalFileOffsetStore#persistAll（发送到Broker更新内存消费进度）。同时，Broker端默认10s周期执行持久化一次消费进度，如下所示是集群模式下消费进度管理图 。

        org.apache.rocketmq.broker.offset.ConsumerOffsetManager是Broker的消费进度更新管理器，其关键属性如下。存储文件名为${RocketMQ_HOME}/store/config/consumerOffset.json。

// 消费进度列表
protected ConcurrentMap> offsetTable = new ConcurrentHashMap>(512);

        RemoteBrokerOffsetStore#persist持久化指定消费队列的消费进度，其核心方法是updateConsumeOffsetToBroker()，其代码如下。

/*** Update the Consumer Offset synchronously, once the Master is off, updated to Slave, here need to be optimized.*/
@Override
public void updateConsumeOffsetToBroker(MessageQueue mq, long offset, boolean isOneway) throws RemotingException,MQBrokerException, InterruptedException, MQClientException {// 获取消费队列的BrokerFindBrokerResult findBrokerResult = this.mQClientFactory.findBrokerAddressInSubscribe(this.mQClientFactory.getBrokerNameFromMessageQueue(mq), MixAll.MASTER_ID, false);if (null == findBrokerResult) {this.mQClientFactory.updateTopicRouteInfoFromNameServer(mq.getTopic());findBrokerResult = this.mQClientFactory.findBrokerAddressInSubscribe(this.mQClientFactory.getBrokerNameFromMessageQueue(mq), MixAll.MASTER_ID, false);}if (findBrokerResult != null) {UpdateConsumerOffsetRequestHeader requestHeader = new UpdateConsumerOffsetRequestHeader();requestHeader.setTopic(mq.getTopic());requestHeader.setConsumerGroup(this.groupName);requestHeader.setQueueId(mq.getQueueId());requestHeader.setCommitOffset(offset);requestHeader.setBname(mq.getBrokerName());// 单向更新，无更新响应结果if (isOneway) {this.mQClientFactory.getMQClientAPIImpl().updateConsumerOffsetOneway(findBrokerResult.getBrokerAddr(), requestHeader, 1000 * 5);}// 不是单向，则返回是否更新成功else {this.mQClientFactory.getMQClientAPIImpl().updateConsumerOffset(findBrokerResult.getBrokerAddr(), requestHeader, 1000 * 5);}} else {throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);}
}

        org.apache.rocketmq.client.consumer.store.RemoteBrokerOffsetStore#readOffset是读取Broker端的消费进度的核心方法，代码如下。

@Override
public long readOffset(final MessageQueue mq, final ReadOffsetType type) {if (mq != null) {switch (type) {// 先从内存中读取，再从磁盘读取case MEMORY_FIRST_THEN_STORE:// 从内存读取case READ_FROM_MEMORY: {AtomicLong offset = this.offsetTable.get(mq);if (offset != null) {return offset.get();} else if (ReadOffsetType.READ_FROM_MEMORY == type) {return -1;}}// 从磁盘读取case READ_FROM_STORE: {try {// 从broker获取指定消费队列的消费偏移量long brokerOffset = this.fetchConsumeOffsetFromBroker(mq);AtomicLong offset = new AtomicLong(brokerOffset);this.updateOffset(mq, offset.get(), false);return brokerOffset;}// No offset in brokercatch (OffsetNotFoundException e) {return -1;}//Other exceptionscatch (Exception e) {log.warn("fetchConsumeOffsetFromBroker exception, " + mq, e);return -2;}}default:break;}}return -3;
}
